TLV1704AIPWR - Texas Instruments

Description: Quad, 2.2-V to 36-V, microPower Comparator

Download TLV1704AIPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

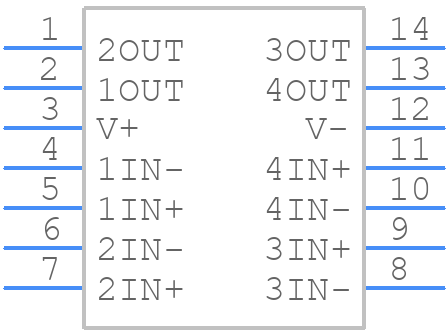

TLV1704AIPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV1704AIPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
TLV1704AIPWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

TLV1704AIPWR Details

  • Manufacturer Part Number:

    TLV1704AIPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    20 µA

  • Bias Current-Max (IIB) @25C:

    0.015 µA

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    560 ns

  • Seated Height-Max:

    1.2 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage Limit-Max:

    40 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV1704AIPWR Frequently Asked Questions (FAQs)

  • A good PCB layout for TLV1704AIPWR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR capacitor for decoupling, and avoid long input traces. Additionally, the output capacitor should be selected based on the output voltage and load current. A minimum output capacitance of 10uF is recommended.
  • The maximum input voltage for TLV1704AIPWR is 18V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage is within the recommended range to ensure reliable operation.
  • TLV1704AIPWR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal design and ensure that the device is properly cooled to maintain reliable operation.
  • The output capacitor selection depends on the output voltage, load current, and desired ripple voltage. A general guideline is to use a capacitor with a minimum capacitance of 10uF and a low ESR (Equivalent Series Resistance). The capacitor should also be rated for the maximum output voltage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV1704AIPWR Overview

Use the download button to access the TLV1704AIPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV17, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
