TLV1704AQPWRQ1 - Texas Instruments

Description: Analog Comparators Automotive Quad, 2.2-V to 36-V, microPower Comparator 14-TSSOP -40 to 125

Download TLV1704AQPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

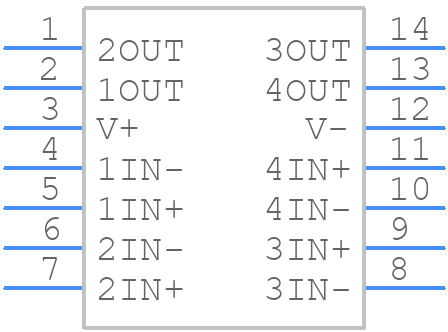

TLV1704AQPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV1704AQPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
TLV1704AQPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

TLV1704AQPWRQ1 Details

  • Manufacturer Part Number:

    TLV1704AQPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.02 µA

  • Bias Current-Max (IIB) @25C:

    0.015 µA

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    560 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage Limit-Max:

    40 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV1704AQPWRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLV1704AQPWRQ1 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The TLV1704AQPWRQ1 requires a single 2.7V to 5.5V power supply. It's recommended to use a low-dropout regulator (LDO) to power the device. Power sequencing is not critical, but it's recommended to power up the device after the input voltage has stabilized.
  • The TLV1704AQPWRQ1 can drive capacitive loads up to 1000 pF. However, it's recommended to limit the capacitive load to 100 pF or less to ensure stability and optimal performance.
  • To filter out noise and ripple on the output of the TLV1704AQPWRQ1, you can use a low-pass filter consisting of a series resistor and a capacitor. The values of the resistor and capacitor will depend on the specific application and the frequency range of interest.
  • The thermal impedance of the TLV1704AQPWRQ1 is 34.4°C/W. To ensure proper thermal management, it's recommended to use a heat sink or a thermal pad, and to keep the device away from other heat sources on the PCB.
