TLV2452IDGKRG4 - Texas Instruments

Description: Operational Amplifiers - Op Amps Dual Mcrpwr R-to-R Input/Output Op Amp

Download TLV2452IDGKRG4 Model

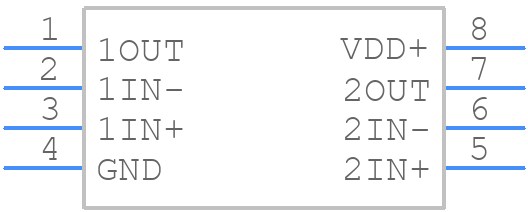

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV2452IDGKRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom
3D Models
TLV2452IDGKRG4 - Texas Instruments  - 3D model - Small Outline Packages - DGK  (S-PDSO-G8)
click to zoom

TLV2452IDGKRG4 Details

  • Manufacturer Part Number:

    TLV2452IDGKRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.007 µA

  • Bias Current-Max (IIB) @25C:

    0.005 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00045 µA

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.02 V/us

  • Slew Rate-Nom:

    0.11 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    0.084 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    220

  • Voltage Gain-Min:

    63095

  • Wideband:

    NO

  • Width:

    3 mm

TLV2452IDGKRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends following a star-grounding topology, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
  • The thermal shutdown feature is designed to protect the device from overheating. If the device exceeds the thermal shutdown temperature (typically 150°C), it will shut down. To handle this, ensure good thermal design, use a heat sink if necessary, and implement a thermal monitoring and shutdown detection mechanism in your system.
  • The recommended input capacitance is 10nF to 100nF, and output capacitance is 10nF to 1uF. Increasing input capacitance can improve noise rejection, while increasing output capacitance can improve stability and reduce ringing. However, excessive capacitance can degrade performance and increase settling time.
  • To ensure EMC, follow proper PCB layout and routing guidelines, use shielding and grounding techniques, and implement filtering and decoupling capacitors. Additionally, consider using a shielded enclosure and ensuring that the device is properly soldered and connected to the PCB.
  • The recommended power-up sequence is to apply VCC first, followed by the input signal. During power-down, remove the input signal first, then VCC. This sequence helps prevent damage from voltage spikes and ensures proper shutdown.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV2452IDGKRG4 Overview

Use the download button to access the TLV2452IDGKRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV24, or try a keyword search, such as Operational Amplifiers
