Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, use short and direct traces for the analog inputs and outputs, and avoid running digital signals near the analog signals.
The TLV2542IDGKR has a built-in POR and BOR circuitry. To handle these, ensure that the power supply is stable and within the recommended operating range. You can also add external circuitry to detect and respond to POR and BOR events, such as resetting the microcontroller or initializing the system.
The recommended clock frequency for the TLV2542IDGKR is between 1.5 MHz and 4 MHz. The conversion rate is dependent on the clock frequency, with higher frequencies resulting in faster conversion rates. However, higher frequencies also increase power consumption and may introduce noise.
The TLV2542IDGKR has a built-in calibration circuitry, but you may need to perform additional calibration depending on your specific application. You can use the internal calibration mode or perform external calibration using a known reference voltage. Consult the datasheet and application notes for more information.
The maximum sampling rate of the TLV2542IDGKR is 400 kSPS. The sampling rate affects the throughput of your system, with higher sampling rates resulting in faster data acquisition. However, higher sampling rates also increase power consumption and may introduce noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2542IDGKR Overview

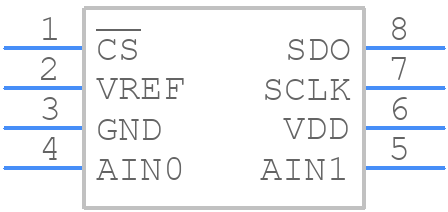

Use the download button to access the TLV2542IDGKR schematic symbol, PCB footprint, and 3D model.
