TLV2543CDWR - Texas Instruments

Description: Analog to Digital Converters - ADC 12-Bit 66 kSPS Serial Out

Download TLV2543CDWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

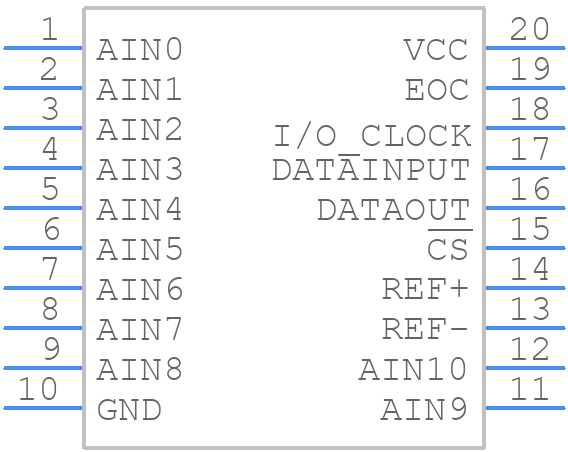

Symbol
TLV2543CDWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV2543CDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW(R-PDSO-G20)
click to zoom
3D Models
TLV2543CDWR - Texas Instruments - 3D model - Small Outline Packages - DW(R-PDSO-G20)
click to zoom

TLV2543CDWR Details

  • Manufacturer Part Number:

    TLV2543CDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SOIC-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    3.6 V

  • Conversion Time-Max:

    10 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.825 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    11

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLV2543CDWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital traces separate. Additionally, it's recommended to use a low-ESR capacitor for the AVCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • The POR and BOR features are enabled by default, but can be disabled by tying the POR/BOR pin to VCC. It's recommended to use an external reset circuit or a supervisor IC to ensure a clean power-on reset and to handle brown-out conditions.
  • The maximum sampling rate of the TLV2543CDWR is 400 kHz, and it affects the power consumption significantly. At higher sampling rates, the power consumption increases, so it's recommended to use the lowest sampling rate required for the application to minimize power consumption.
  • The TLV2543CDWR has a built-in calibration feature that can be accessed through the CAL pin. Texas Instruments recommends a two-point calibration procedure, where the device is calibrated at two known input voltages to ensure accurate readings across the entire input range.
  • The TLV2543CDWR has a specified temperature range of -40°C to 125°C, and the accuracy and linearity can be affected by temperature variations. Texas Instruments recommends using temperature compensation techniques, such as using a temperature sensor and adjusting the readings accordingly, to ensure accurate readings across the entire temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV2543CDWR Overview

Use the download button to access the TLV2543CDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV25, or try a keyword search, such as Analog to Digital Converters
