Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital traces separate. Additionally, it's recommended to use a low-ESR capacitor for the AVDD pin and to keep the input traces as short as possible.
To handle the high input impedance of the TLV2545CDGK, it's recommended to use a buffer amplifier or an op-amp with a low output impedance to drive the input pins. Additionally, a series resistor can be added to the input pins to help match the impedance and prevent signal reflections.
The maximum sampling rate of the TLV2545CDGK is 400 kSPS, and it can be achieved by using the internal clock and setting the conversion mode to 'Fast'. However, increasing the sampling rate will also increase the power consumption, so it's recommended to optimize the sampling rate based on the specific application requirements.
The TLV2545CDGK has an internal calibration circuit that can be used to calibrate the device. The recommended calibration procedure involves applying a known input voltage and then using the calibration registers to adjust the offset and gain errors. Additionally, it's recommended to perform a system-level calibration that takes into account the entire signal chain, including the sensor and the ADC.
The TLV2545CDGK has a maximum operating temperature range of -40°C to 125°C, and it's recommended to keep the device within this range to ensure accurate and reliable operation. Additionally, it's recommended to provide adequate thermal dissipation and to avoid thermal gradients on the PCB to prevent thermal-induced errors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2545CDGK Overview

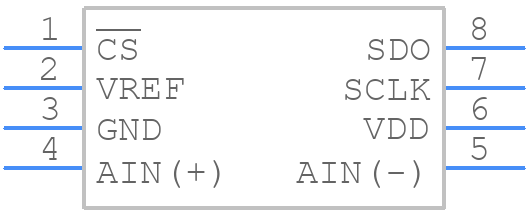

Use the download button to access the TLV2545CDGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV25,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
