TLV2548CDWR - Texas Instruments

Description: Analog to Digital Converters - ADC 12-Bit 200 kSPS Serial Out

Download TLV2548CDWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

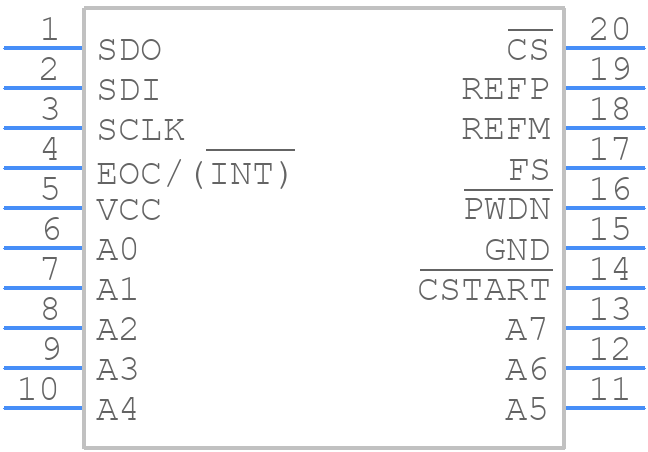

TLV2548CDWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV2548CDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
TLV2548CDWR - Texas Instruments - 3D model - Small Outline Packages - DW0020A
click to zoom

TLV2548CDWR Details

  • Manufacturer Part Number:

    TLV2548CDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    3.86 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLV2548CDWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital traces separate. Additionally, it's recommended to use a low-ESR capacitor for the AVCC pin and to keep the input traces as short as possible.
  • The TLV2548CDWR has a built-in POR and BOR circuitry that resets the device during power-up or brown-out conditions. To handle this, ensure that your system design can tolerate the reset pulse duration and that your firmware is designed to handle the reset sequence.
  • The recommended clock frequency for the TLV2548CDWR is between 1.5 MHz and 3.5 MHz. A higher clock frequency can improve the ADC's throughput, but may also increase the noise and decrease the accuracy. It's recommended to consult the datasheet and application notes for specific guidance on clock frequency selection.
  • The TLV2548CDWR has a built-in calibration circuitry that can be used to calibrate the ADC. Texas Instruments recommends performing a self-calibration procedure during power-up or at regular intervals to ensure optimal accuracy. Additionally, external calibration can be performed using an external reference voltage and calibration software.
  • The maximum input voltage range for the TLV2548CDWR is 5.5V. Exceeding this voltage can damage the device. It's recommended to ensure that the input voltage is within the specified range to maintain optimal ADC performance and accuracy.
