TLV2548QDWR - Texas Instruments

Description: Automotive Catalog 12-Bit 200 kSPS ADC Ser. Out, Auto Pwrdn (S/W and H/W), Low Power

Download TLV2548QDWR Model

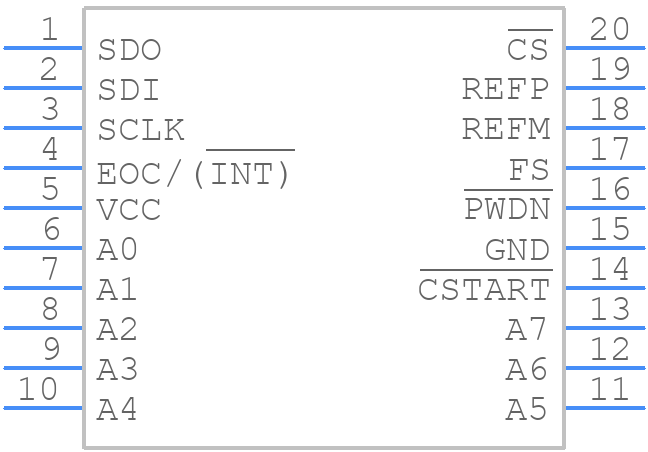

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV2548QDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
TLV2548QDWR - Texas Instruments  - 3D model - Small Outline Packages - DW0020A
click to zoom

TLV2548QDWR Details

  • Manufacturer Part Number:

    TLV2548QDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Analog Input Voltage-Min:

    3 V

  • Conversion Time-Max:

    4.65 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.0293%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    2.4 mA

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLV2548QDWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLV2548QDWR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The TLV2548QDWR requires a single 2.7V to 5.5V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the analog supply (AVDD) before the digital supply (DVDD) and to power down the digital supply before the analog supply.
  • The TLV2548QDWR can support clock frequencies up to 3.2 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
  • The TLV2548QDWR has a programmable gain amplifier (PGA) that can be configured for different gain settings using the GAIN[2:0] pins. The available gain options are 1, 2, 4, 8, 16, 32, 64, and 128.
  • The REFBUFEN pin is used to enable or disable the internal reference buffer. When REFBUFEN is high, the internal reference buffer is enabled, and when it's low, the internal reference buffer is disabled. This pin can be used to reduce power consumption when the internal reference is not needed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV2548QDWR Overview

Use the download button to access the TLV2548QDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV25, or try a keyword search, such as Analog to Digital Converters
