It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
Ensure the device operates within the recommended voltage range (2.7V to 5.5V), temperature range (-40°C to 125°C), and power dissipation (PD) limits. Also, follow the recommended PCB layout and thermal management guidelines to prevent overheating.
Not using bypass capacitors can lead to noise, oscillations, and reduced performance. The recommended bypass capacitors are 10uF and 0.1uF. To determine optimal capacitor values, consider the device's power supply rejection ratio (PSRR), noise tolerance, and the system's power supply characteristics.
Use an oscilloscope to monitor the input and output signals, and check for noise, ringing, or oscillations. Verify the power supply voltage, ground connections, and bypass capacitors. Also, check for layout and routing issues, and ensure the device is operated within its recommended conditions.
The TLV2548CPW is a commercial-grade device, but it can be used in high-reliability applications with proper design, testing, and validation. It meets various industry standards, such as RoHS, REACH, and WEEE. However, for safety-critical applications, consult with Texas Instruments and relevant industry standards (e.g., IEC 61508, ISO 26262) to ensure compliance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV2548CPW Overview

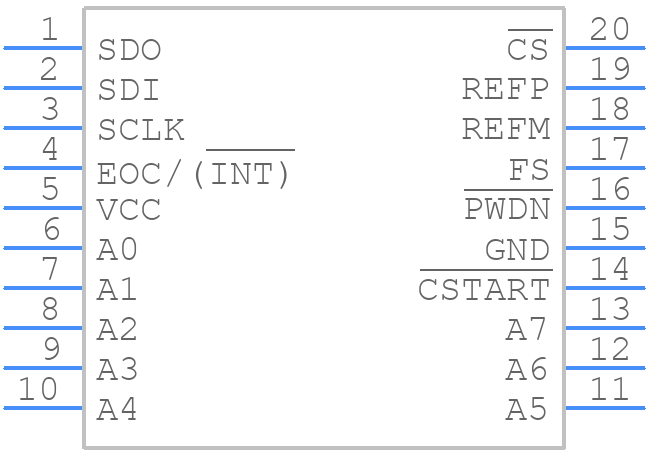

Use the download button to access the TLV2548CPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV25,
or try a keyword search, such as Analog to Digital Converters
