TLV2553IPWRQ1 - Texas Instruments

Description: Automotive 12-bit 200-KSPS 11-channel low-power serial ADC with power down

Download TLV2553IPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

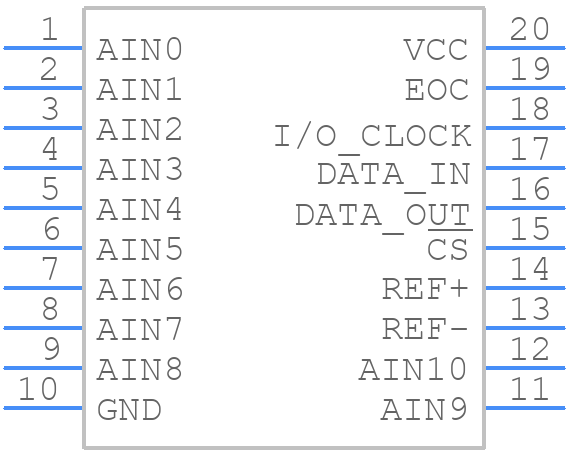

TLV2553IPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV2553IPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
TLV2553IPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

TLV2553IPWRQ1 Details

  • Manufacturer Part Number:

    TLV2553IPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    5.54 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    11

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV2553IPWRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for TLV2553IPWRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR). A ceramic capacitor with a value between 10uF to 22uF is recommended. Additionally, the output capacitor should be placed close to the device to minimize the loop area and reduce noise.
  • The maximum input voltage that TLV2553IPWRQ1 can handle is 18V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage remains within the specified range.
  • To reduce the noise and ripple in the output voltage, it's recommended to use a low-noise input voltage, add a noise filter capacitor (e.g., 10nF) between the input and ground, and use a high-quality output capacitor with low ESR. Additionally, minimizing the loop area and using a shielded cable can also help reduce noise and ripple.
  • The thermal derating of TLV2553IPWRQ1 is 12.5mW/°C above 25°C. This means that the device's power dissipation should be reduced by 12.5mW for every degree Celsius above 25°C to prevent overheating and ensure reliable operation.
