TLV2556IDW - Texas Instruments

Description: 12-Bit, 200 KSPS, 11 Channel, Low Power, Serial ADC with Internal Reference

Download TLV2556IDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

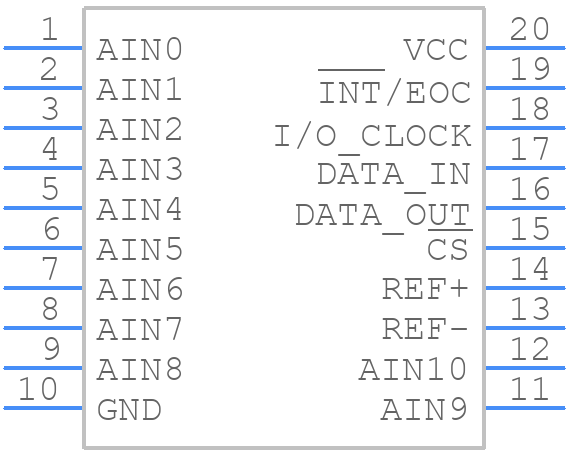

Symbol
TLV2556IDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV2556IDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
TLV2556IDW - Texas Instruments - 3D model - Small Outline Packages - DW0020A
click to zoom

TLV2556IDW Details

  • Manufacturer Part Number:

    TLV2556IDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    5.54 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.825 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    11

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLV2556IDW Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
  • Ensure the device operates within the recommended voltage range (2.7V to 5.5V), temperature range (-40°C to 125°C), and power dissipation (PD) limits. Also, follow the recommended PCB layout and thermal management guidelines to prevent overheating.
  • Choose components with suitable voltage ratings, tolerance, and temperature coefficients. Ensure capacitors have low equivalent series resistance (ESR) and are placed close to the device. Select resistors with low thermal noise and suitable power ratings.
  • Check the PCB layout for noise susceptibility, ensure proper power supply decoupling, and verify the device is operating within its recommended conditions. Use an oscilloscope to analyze the output waveform and identify any signs of oscillation or instability.
  • The limited bandwidth may affect the device's ability to accurately amplify high-frequency signals. Consider using a different amplifier or adding external filtering to compensate for the bandwidth limitation.
