TLV320ADC3001IYZHT footprint, schematic symbol and 3D model by Texas Instruments

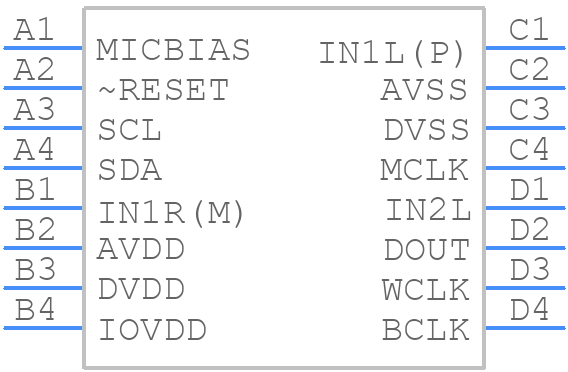

Symbol

click to zoom

PCB Footprints

TLV320ADC3001IYZHT - Texas Instruments PCB footprint - Other - Other - BGA16C50P4X4_224X215X63

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TLV320ADC3001IYZHT
Part Number TLV320ADC3001IYZHT
Manufacturer Texas Instruments
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BGA16C50P4X4_224X215X63
Released Date Jan 12, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

TLV320ADC3001IYZHT Details

Manufacturer Part Number:
TLV320ADC3001IYZHT
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
BGA
Package Description:
VFBGA-16
Pin Count:
16
Country Of Origin:
Philippines
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Manufacturer:
Texas Instruments
YTEOL:
15
Analog Input Voltage-Max:
3.6 V
Converter Type:
ADC, PROPRIETARY METHOD
JESD-30 Code:
S-PBGA-B16
JESD-609 Code:
e1
Length:
2.145 mm
Moisture Sensitivity Level:
1
Number of Analog In Channels:
2
Number of Bits:
16
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Bit Code:
2S COMPLEMENT BINARY
Output Format:
SERIAL
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Equivalence Code:
BGA16,4X4,20
Package Shape:
SQUARE
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Sample Rate:
0.096 MHz
Seated Height-Max:
0.625 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
2.16 mm

TLV320ADC3001IYZHT Frequently Asked Questions (FAQs)

The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures proper initialization of the ADC.
To optimize performance, ensure that the analog input signals are properly filtered and buffered, and that the ADC is operated within its recommended operating conditions. Additionally, use a low-noise power supply, and consider using a dedicated analog ground plane to reduce noise coupling.
The maximum clock frequency that can be used with the TLV320ADC3001 is 50 MHz. However, the actual clock frequency used may be limited by the specific application and system requirements.
The TLV320ADC3001 can be configured for differential or pseudo-differential input mode by setting the appropriate bits in the device's control register. Refer to the datasheet for specific register settings and configuration details.
The latency of the TLV320ADC3001 is approximately 2.5 clock cycles. This latency should be taken into account when designing the system's data acquisition and processing pipeline to ensure proper synchronization and data integrity.
