Part Image

TLV320ADC3120IRTER - Texas Instruments

Description: ADC, Audio 7.35k ~ 768k I²C, I²S, TDM 20-WQFN (3x3) -40°C ~ 125°C

Download TLV320ADC3120IRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

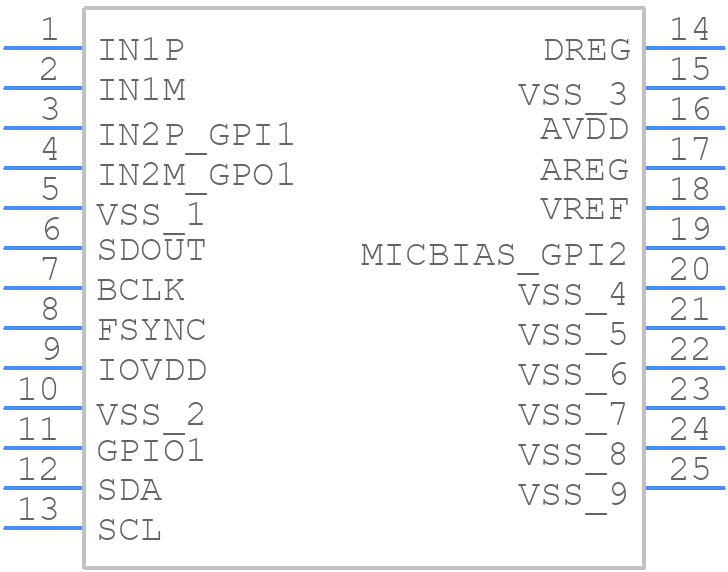

Symbol
TLV320ADC3120IRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320ADC3120IRTER - Texas Instruments PCB footprint - Other - Other - TLV320ADC3120IRTER-4
click to zoom
3D Models
TLV320ADC3120IRTER - Texas Instruments - 3D model - Other - TLV320ADC3120IRTER-4
click to zoom

TLV320ADC3120IRTER Details

  • Manufacturer Part Number:

    TLV320ADC3120IRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    1.9 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.768 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TLV320ADC3120IRTER Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDA (analog power) first, followed by VDD (digital power) and then the clock signal. This ensures proper initialization of the ADC.
  • To optimize performance, use a low-noise power supply, decouple the power pins with capacitors, and use a ground plane to reduce noise. Additionally, use a low-pass filter at the input to remove high-frequency noise.
  • The maximum sampling rate of the TLV320ADC3120 is 312.5 kSPS. As the sampling rate increases, the power consumption also increases. To minimize power consumption, use the lowest sampling rate required for your application.
  • The TLV320ADC3120 has a serial interface (SPI) that can be easily interfaced with a microcontroller or FPGA. Use a level shifter if necessary, and ensure that the clock signal is synchronized with the ADC's clock input.
  • The TLV320ADC3120's performance is affected by temperature, with changes in offset, gain, and noise floor. Ensure that the device is operated within the recommended temperature range (-40°C to 85°C) for optimal performance.
