TLV320AIC23BIPWRG4 - Texas Instruments

Description: Interface - CODECs Lo-Pwr Highly Integrated Codec

Download TLV320AIC23BIPWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

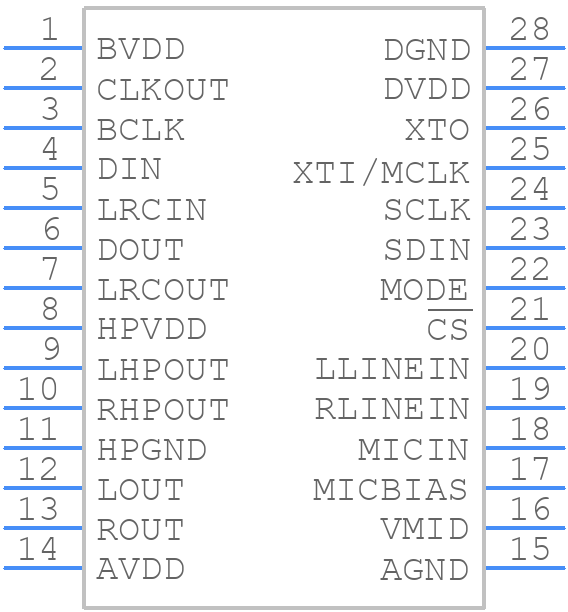

TLV320AIC23BIPWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC23BIPWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28
click to zoom
3D Models
TLV320AIC23BIPWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28
click to zoom

TLV320AIC23BIPWRG4 Details

  • Manufacturer Part Number:

    TLV320AIC23BIPWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES 1.42V TO 3.6V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TLV320AIC23BIPWRG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • To configure the TLV320AIC23BIPWRG4 for stereo audio, set the STEREO bit in the Audio Interface Control Register (AIC23_REG_0) to 1. This enables stereo mode and allows the device to process left and right audio channels separately.
  • The TLV320AIC23BIPWRG4 supports clock frequencies up to 50 MHz. However, the recommended clock frequency is 12.288 MHz for optimal performance.
  • To reduce power consumption, use the Power Management Register (AIC23_REG_4) to disable unused blocks, such as the ADC or DAC, when not in use. Additionally, use the Dynamic Power Management (DPM) feature to dynamically adjust power consumption based on the audio signal activity.
  • To ensure optimal performance and minimize noise, follow the recommended layout and routing guidelines in the datasheet, including keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths.
