TLV320AIC23BRHDR - Texas Instruments

Description: Low-Power Stereo CODEC with HP Amplifier

Download TLV320AIC23BRHDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

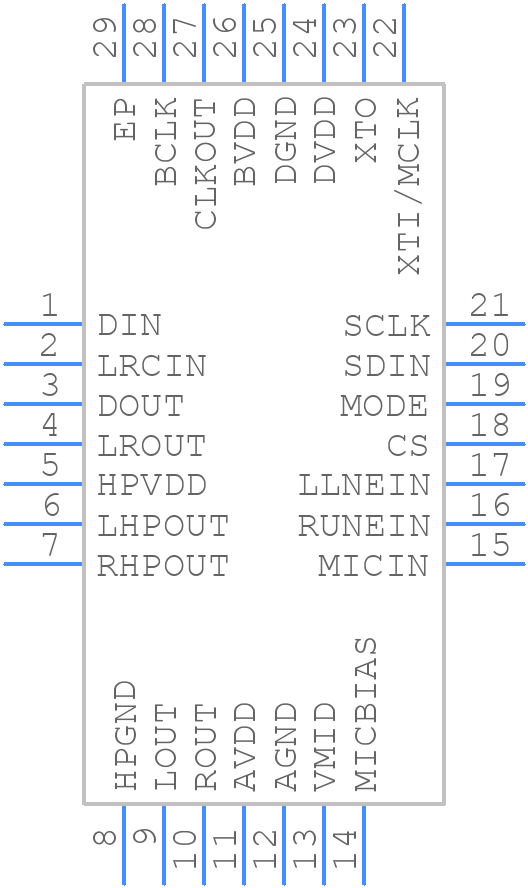

Symbol
TLV320AIC23BRHDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC23BRHDR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHD (S-PVQFN-N28)
click to zoom
3D Models
TLV320AIC23BRHDR - Texas Instruments - 3D model - Quad Flat No-Lead - RHD (S-PVQFN-N28)
click to zoom

TLV320AIC23BRHDR Details

  • Manufacturer Part Number:

    TLV320AIC23BRHDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES 1.42V TO 3.6V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    26 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TLV320AIC23BRHDR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • The TLV320AIC23BRHDR can be configured for master or slave mode by setting the appropriate bits in the Control Register (CR) and the Interface Control Register (ICR). Consult the datasheet for specific bit settings.
  • The TLV320AIC23BRHDR supports clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • To optimize the TLV320AIC23BRHDR for low power consumption, use the Power Management Register (PMR) to control the power modes of the device. Additionally, consider using the device's built-in power-saving features, such as the automatic power-down mode.
  • The recommended layout and routing for the TLV320AIC23BRHDR involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. Consult the datasheet and application notes for specific guidelines.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TLV320AIC23BRHDR Overview

Use the download button to access the TLV320AIC23BRHDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
