TLV320AIC26IRHBR - Texas Instruments

Description: Low-Power Mono ADC/Stereo DAC With HP/Speaker Amplifier and 12-Bit Measurement ADC

Download TLV320AIC26IRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

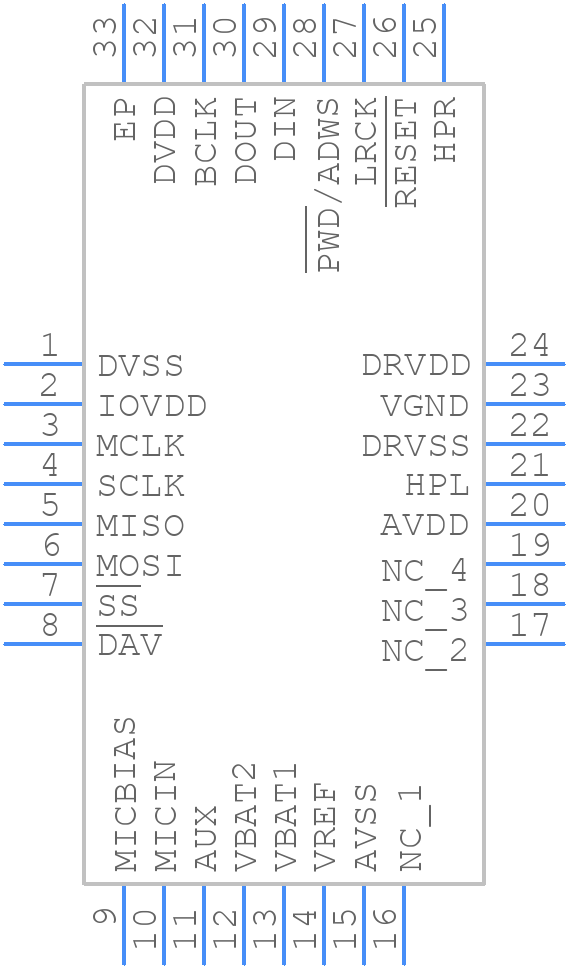

Symbol
TLV320AIC26IRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV320AIC26IRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB(S-PVQFN-N32
click to zoom
3D Models
TLV320AIC26IRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB(S-PVQFN-N32
click to zoom

TLV320AIC26IRHBR Details

  • Manufacturer Part Number:

    TLV320AIC26IRHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TLV320AIC26IRHBR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
  • The TLV320AIC26IRHBR can be configured using the I2C or SPI interface. The device has multiple registers that control various functions such as gain, mute, and clock settings. Refer to the datasheet for specific register settings for your application.
  • The maximum input signal level for the TLV320AIC26IRHBR is 2.2 Vrms. Exceeding this level may result in distortion or damage to the device.
  • To optimize the TLV320AIC26IRHBR for low power consumption, use the power-down modes, reduce the clock frequency, and adjust the analog and digital supply voltages. Additionally, use the device's built-in power-saving features such as the automatic gain control and the digital volume control.
  • The recommended layout and routing for the TLV320AIC26IRHBR involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, use decoupling capacitors and follow the datasheet's recommended PCB layout guidelines.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TLV320AIC26IRHBR Overview

Use the download button to access the TLV320AIC26IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV32, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
