TLV5619CDWR - Texas Instruments

Description: Digital to Analog Converters - DAC 12-Bit Sngl Channel DAC

Download TLV5619CDWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

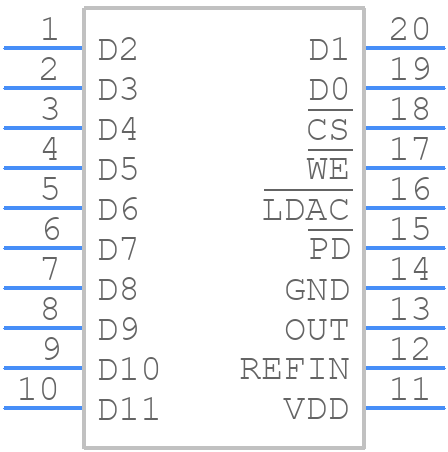

TLV5619CDWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5619CDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW
click to zoom
3D Models
TLV5619CDWR - Texas Instruments - 3D model - Small Outline Packages - DW
click to zoom

TLV5619CDWR Details

  • Manufacturer Part Number:

    TLV5619CDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.9 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    3 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLV5619CDWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-ground connection for the analog and digital grounds, and placing the device close to the power supply and analog signal sources to minimize noise. A 4-layer PCB with a solid ground plane is also recommended.
  • To ensure accurate voltage output, it's essential to use a high-precision external reference voltage, and to minimize noise on the REF pin by using a low-pass filter and a decoupling capacitor. Additionally, the output voltage should be buffered with an op-amp if it's not connected directly to the load.
  • The TLV5619CDWR can drive a maximum capacitive load of 10nF. Exceeding this limit may cause oscillations or instability in the output voltage.
  • To protect the device from overvoltage, use a voltage clamp or a zener diode on the input pins. For overcurrent protection, use a current-limiting resistor or a fuse in series with the output pin. Additionally, ensure that the device is operated within its recommended operating conditions.
  • The TLV5619CDWR has a thermal derating of 13.9mW/°C above 25°C. This means that the device's power dissipation should be reduced as the ambient temperature increases to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV5619CDWR Overview

Use the download button to access the TLV5619CDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
