The TLV5619IDW is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital traces separate. Additionally, decoupling capacitors should be placed as close to the device as possible.
The TLV5619IDW requires a single 5V power supply, and it is recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. Additionally, a 10uF decoupling capacitor should be placed between the power pin and ground to filter out any noise.
The TLV5619IDW has an input voltage range of 0V to 5.5V, and exceeding this range can cause damage to the device. It is recommended to use input voltage limiting resistors or clamping diodes to prevent overvoltage conditions.
To optimize the TLV5619IDW for low noise performance, it is recommended to use a low-noise power supply, keep the analog and digital traces separate, and use a solid ground plane. Additionally, the device should be operated at a stable temperature, and the input signals should be filtered to remove any high-frequency noise.
The TLV5619IDW has a maximum clock frequency of 20MHz, and exceeding this frequency can cause the device to malfunction. It is recommended to use a clock frequency divider or a clock signal conditioner to ensure the clock signal is within the specified range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5619IDW Overview

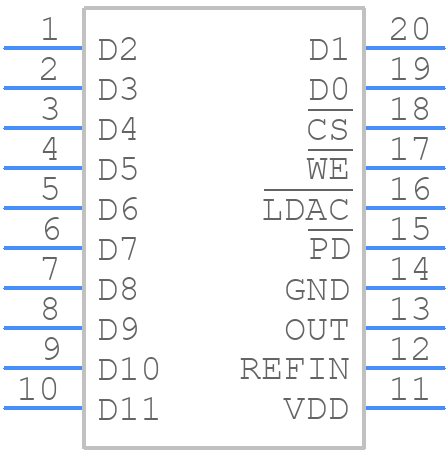

Use the download button to access the TLV5619IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
