TLV5619QDWREP - Texas Instruments

Description: Enhanced Product 12-Bit, Single Channel Dac, Parallel, Voltage Out, Low Power

Download TLV5619QDWREP Model

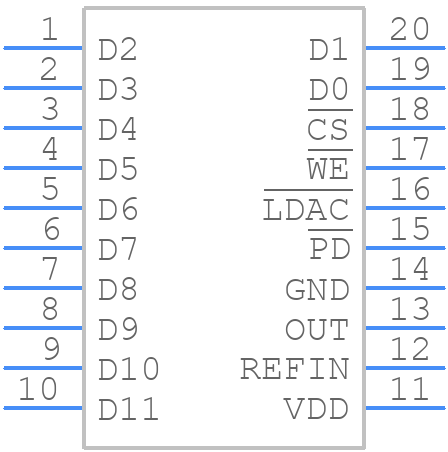

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLV5619QDWREP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TLV5619QDWREP
click to zoom
3D Models
TLV5619QDWREP - Texas Instruments  - 3D model - Small Outline Packages - TLV5619QDWREP
click to zoom

TLV5619QDWREP Details

  • Manufacturer Part Number:

    TLV5619QDWREP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.9 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    3 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLV5619QDWREP Frequently Asked Questions (FAQs)

  • A good PCB layout for the TLV5619QDWREP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and crosstalk.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal reference voltage to achieve the desired output. Additionally, consider using an external reference voltage source for improved accuracy.
  • The TLV5619QDWREP can drive capacitive loads up to 1000 pF, but it's recommended to limit the load capacitance to 100 pF or less to ensure stability and optimal performance.
  • Yes, the TLV5619QDWREP can be used in a ratiometric configuration by connecting the output to a resistive divider network, which allows the output voltage to be proportional to the input voltage. This configuration is useful for applications requiring a specific output voltage range.
  • To prevent damage or malfunction, it's recommended to power up the TLV5619QDWREP in the following sequence: 1) Apply the analog power supply (AVCC), 2) Apply the digital power supply (DVCC), and 3) Apply the input voltage. This sequence ensures that the internal circuitry is properly initialized and configured.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV5619QDWREP Overview

Use the download button to access the TLV5619QDWREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
