TLV5619IDWR - Texas Instruments

Description: Digital to Analog Converters - DAC 12-Bit Sngl Channel DAC

Download TLV5619IDWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

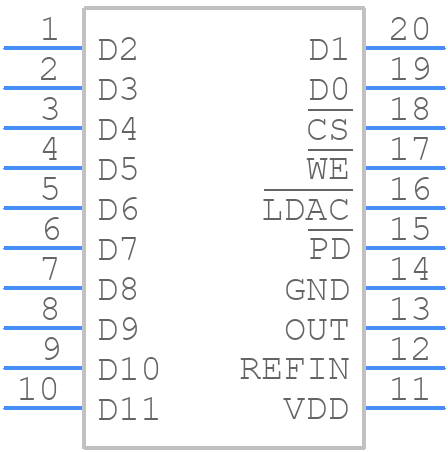

TLV5619IDWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5619IDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
TLV5619IDWR - Texas Instruments - 3D model - Small Outline Packages - DW0020A
click to zoom

TLV5619IDWR Details

  • Manufacturer Part Number:

    TLV5619IDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.9 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    3 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLV5619IDWR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the device placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is driving. The device should be placed on a solid ground plane, and the analog and digital grounds should be separated to minimize noise coupling.
  • The POR and BOR features of the TLV5619IDWR can be handled by connecting the POR pin to a capacitor and a pull-up resistor to VCC. The capacitor should be chosen to ensure that the POR pin is held low for at least 1ms after power-up. The BOR threshold can be adjusted by connecting a resistor divider network between VCC and GND to the BOR pin.
  • The maximum clock frequency that can be used with the TLV5619IDWR is 50MHz. However, the actual clock frequency used should be determined by the specific application requirements and the device's operating conditions.
  • The TLV5619IDWR is specified to operate over a temperature range of -40°C to 125°C. To ensure that the device operates within this range, the system designer should ensure that the device is properly heatsinked and that the ambient temperature is within the specified range. The device's junction temperature can be monitored using the thermal pad, which is connected to the die.
  • The output of the TLV5619IDWR should be driven using a low-impedance driver, such as a buffer or an op-amp, to ensure that the output voltage is not loaded down. The output should also be terminated with a load resistor to prevent ringing and oscillations.
