The recommended layout and placement for the TLV5619IPW involves placing the device close to the power supply, using a solid ground plane, and keeping the analog and digital grounds separate. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise and interference.
To ensure accurate voltage reference performance, it's essential to follow proper PCB layout and design guidelines, use a low-noise power supply, and minimize noise coupling into the reference input. Additionally, consider using a voltage reference capacitor (CREF) to filter out high-frequency noise.
The TLV5619IPW can source up to 10mA of output current, making it suitable for a wide range of applications. However, it's essential to ensure that the output current does not exceed the maximum rating to prevent device damage or degradation.
To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods. Additionally, consider using thermal design and simulation tools to optimize your design.
To ensure EMC compliance, follow proper PCB layout and design guidelines, use shielding and filtering techniques, and minimize radiated emissions. Additionally, consider using electromagnetic simulation tools to optimize your design and ensure compliance with relevant EMC standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5619IPW Overview

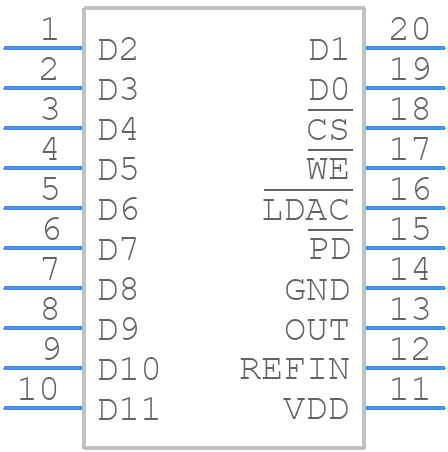

Use the download button to access the TLV5619IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
