The recommended layout and routing for the TLV5620CDR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for the VCC pin.
To ensure the TLV5620CDR operates within its specified temperature range, it's essential to provide adequate heat dissipation, avoid overheating, and keep the device away from heat sources. The device should be operated within the specified temperature range of -40°C to 125°C.
The recommended power-up sequence for the TLV5620CDR involves applying the analog power supply (VCC) before the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps prevent unwanted digital noise from affecting the analog signals.
The TLV5620CDR's digital output signals should be handled carefully to avoid signal degradation. It's recommended to use a low-capacitance load, minimize the trace length, and use a termination resistor if necessary. Additionally, the output signals should be buffered if they need to drive a long cable or a capacitive load.
The recommended method for filtering the TLV5620CDR's analog input signals involves using a low-pass filter with a cutoff frequency that is lower than the Nyquist frequency. This helps to remove high-frequency noise and aliasing, ensuring accurate conversion results.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5620CDR Overview

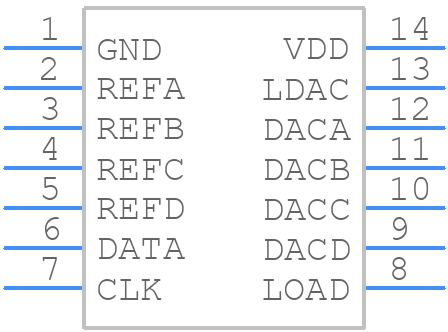

Use the download button to access the TLV5620CDR schematic symbol, PCB footprint, and 3D model.
