TLV5620CDG4 - Texas Instruments

Description: Digital to Analog Converters - DAC 8-Bit 10 us DAC Serial In Quad DAC

Download TLV5620CDG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

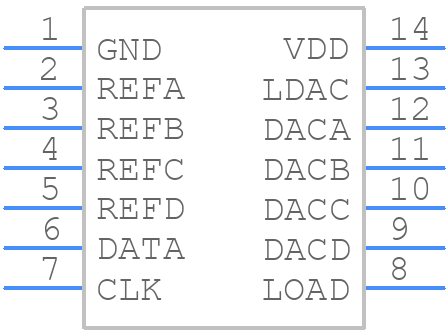

TLV5620CDG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5620CDG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)*9
click to zoom
3D Models
TLV5620CDG4 - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G14)*9
click to zoom

TLV5620CDG4 Details

  • Manufacturer Part Number:

    TLV5620CDG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.048 MHz

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.905 mm

TLV5620CDG4 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-ground connection for the analog and digital grounds, and to keep the analog and digital signal traces separate to minimize noise coupling. Additionally, it's recommended to use a solid ground plane and to place the device close to the analog signal sources to reduce noise pickup.
  • The POR and BOR features of the TLV5620CDG4 are designed to ensure that the device powers up in a known state. To handle these features, it's recommended to connect the POR pin to a capacitor to VCC, and to ensure that the power supply voltage ramps up slowly to allow the POR circuit to function correctly. Additionally, the BOR threshold can be adjusted by connecting a resistor divider network to the BOR pin.
  • The maximum clock frequency that can be used with the TLV5620CDG4 is 20 MHz. However, the actual clock frequency that can be used may be limited by the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information on clock frequency limitations.
  • The TLV5620CDG4 can be programmed to output a specific voltage or current using the internal DAC and the serial interface. The device can be programmed using a microcontroller or other digital interface, and the output voltage or current can be set using the DAC register values. Consult the datasheet and application notes for more information on programming the TLV5620CDG4.
  • The thermal shutdown temperature of the TLV5620CDG4 is typically around 150°C. However, this value can vary depending on the specific device and application. It's recommended to consult the datasheet and application notes for more information on thermal shutdown temperature and thermal management.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV5620CDG4 Overview

Use the download button to access the TLV5620CDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56, or try a keyword search, such as Digital to Analog Converters
