TLV5620CD - Texas Instruments

Description: 8-Bit, 10 us DAC, Serial Input, Quad DAC, Pgrmable 1x or 2x Output, Simultaneous Update

Download TLV5620CD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

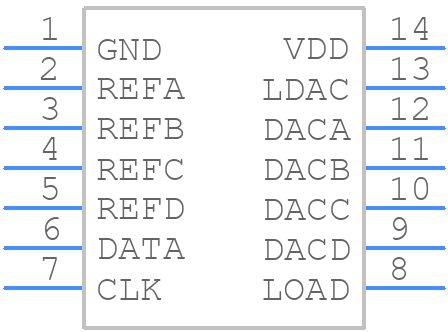

Symbol
TLV5620CD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5620CD - Texas Instruments PCB footprint - Other - Other - SOIC127P600X175-14N
click to zoom
3D Models
TLV5620CD - Texas Instruments - 3D model - Other - SOIC127P600X175-14N
click to zoom

TLV5620CD Details

  • Manufacturer Part Number:

    TLV5620CD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.048 MHz

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.905 mm

TLV5620CD Frequently Asked Questions (FAQs)

  • The TLV5620CD is a high-frequency device, so it's essential to follow good layout and placement practices to minimize noise and ensure proper operation. TI recommends placing the device close to the power supply, using a solid ground plane, and keeping the input and output traces short and separate.
  • The internal voltage reference of the TLV5620CD is enabled by default. To use an external voltage reference, connect the REFOUT pin to the external reference voltage and tie the REFEN pin to VCC. Ensure the external reference voltage is stable and within the recommended range.
  • The TLV5620CD can operate up to 50 MHz, but the maximum clock frequency depends on the specific application and output frequency. Consult the datasheet and application notes for more information on clock frequency limitations.
  • To minimize power consumption, operate the TLV5620CD at the lowest possible clock frequency, use the power-down mode when not in use, and optimize the output voltage and current settings. Additionally, consider using a lower voltage power supply and optimizing the PCB layout for minimal power loss.
  • TI recommends using a 0.1 μF to 1 μF decoupling capacitor between VCC and GND, placed as close to the device as possible. This helps to filter out noise and ensure stable operation.
