The TLV5620IDR is a sensitive analog device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, decoupling capacitors should be placed as close to the device as possible.
The TLV5620IDR requires a single 5V power supply, and it is recommended to use a low-dropout linear regulator (LDO) to power the device. The power supply should be decoupled with a 10uF capacitor in parallel with a 0.1uF capacitor. Additionally, the power supply should be clean and free of noise.
The TLV5620IDR can handle clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It is recommended to consult the datasheet and application notes for more information.
The TLV5620IDR is a digital-to-analog converter (DAC) that can be programmed using a 3-wire serial interface. The device can be programmed using a microcontroller or a digital signal processor (DSP). The programming sequence and protocol are described in the datasheet and application notes.
The settling time of the TLV5620IDR is typically around 10-15 microseconds. However, the actual settling time may vary depending on the specific application, output load, and clock frequency. It is recommended to consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5620IDR Overview

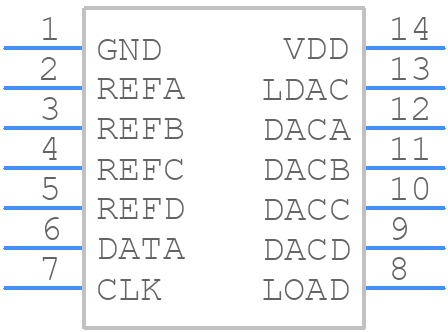

Use the download button to access the TLV5620IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
