TLV5624CD - Texas Instruments

Description: 8-Bit, 1.0 to 3.5 us DAC, Serial Input, Pgrmable Int. Ref., Settling Time

Download TLV5624CD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

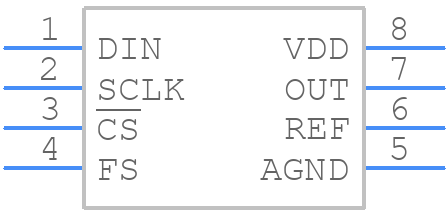

Symbol
TLV5624CD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5624CD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC-ren5
click to zoom
3D Models
TLV5624CD - Texas Instruments - 3D model - Small Outline Packages - 8-Pin SOIC-ren5
click to zoom

TLV5624CD Details

  • Manufacturer Part Number:

    TLV5624CD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.9 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.233 MHz

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    3.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TLV5624CD Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the device to filter out noise.
  • The TLV5624CD has a built-in POR and BOR circuitry that resets the device during power-up or brown-out conditions. To handle this, ensure that the power supply is stable and within the recommended operating range. Also, add a capacitor to the VCC pin to filter out noise and ensure a clean power-up sequence.
  • The TLV5624CD can operate with clock frequencies up to 20 MHz. However, it's recommended to use a clock frequency between 1 MHz to 10 MHz for optimal performance and to minimize noise and jitter.
  • The TLV5624CD has a built-in calibration circuitry that can be used to trim the offset and gain errors. To calibrate the device, apply a known input voltage and measure the output code. Then, use the calibration registers to adjust the offset and gain to achieve the desired accuracy.
  • The TLV5624CD is specified to operate over a temperature range of -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLV5624CD Overview

Use the download button to access the TLV5624CD schematic symbol, PCB footprint, and 3D model.
