TLV5624ID - Texas Instruments

Description: 8-Bit, 1.0 to 3.5 us DAC, Serial Input, Pgrmable Int. Ref., Settling Time

Download TLV5624ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

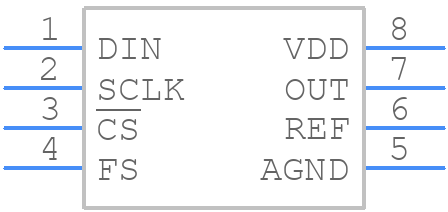

TLV5624ID - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5624ID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TLV5624ID
click to zoom
3D Models
TLV5624ID - Texas Instruments - 3D model - Small Outline Packages - TLV5624ID
click to zoom

TLV5624ID Details

  • Manufacturer Part Number:

    TLV5624ID

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.9 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.233 MHz

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Max:

    7 µs

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    3.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TLV5624ID Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-ground connection for the analog and digital grounds, and to keep the analog and digital signal traces separate to minimize noise coupling. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce noise and EMI.
  • The internal clock oscillator's frequency variation can be handled by using an external clock source or by using a clock synchronization technique such as PLL or DLL. Additionally, the TLV5624ID has a clock monitor circuit that can detect clock frequency variations and provide an error signal.
  • The TLV5624ID's DAC output can drive a maximum capacitive load of 200pF. Exceeding this limit may cause instability or oscillations in the output signal.
  • To ensure data integrity when using the SPI interface, it's recommended to use a clock frequency of 10MHz or less, and to use a pull-up resistor on the SCLK line to prevent clock stretching. Additionally, it's recommended to use a CRC or checksum to detect data errors.
  • The power-on reset (POR) timing for the TLV5624ID is typically around 10ms, but it can vary depending on the power supply ramp-up time and the specific application. It's recommended to wait for at least 10ms after power-up before accessing the device.
