Texas Instruments recommends a compact layout with the device placed close to the power supply, using short traces and minimizing loop areas to reduce noise. Additionally, a solid ground plane and decoupling capacitors are essential for optimal performance.
The internal reference voltage can be configured by selecting the appropriate resistor values for the REFOUT pin. A higher reference voltage accuracy comes at the cost of increased power consumption. Engineers should consider their specific application requirements and balance accuracy with power consumption accordingly.
The TLV5624CDGKR can deliver up to 10mA of output current per channel. However, high output currents can increase the device's junction temperature, which may affect its performance and reliability. Engineers should ensure proper thermal management and consider the device's thermal characteristics in their design.
To implement a voltage regulator using the TLV5624CDGKR, engineers should follow a typical voltage regulator topology, ensuring proper compensation and stability analysis. Key considerations include selecting the correct output capacitor, choosing the right feedback resistors, and analyzing the regulator's transient response to ensure stability and performance.
To minimize EMI and EMC issues, engineers should follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering techniques. Additionally, they should consider the device's frequency response and ensure that it does not oscillate or radiate excessive energy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5624CDGKR Overview

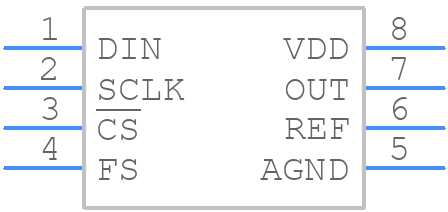

Use the download button to access the TLV5624CDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
