TLV5628IDW - Texas Instruments

Description: Texas Instruments TLV5628IDW, 8-channel 8 bit Serial DAC, 45ksps, 16-Pin SOIC

Download TLV5628IDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

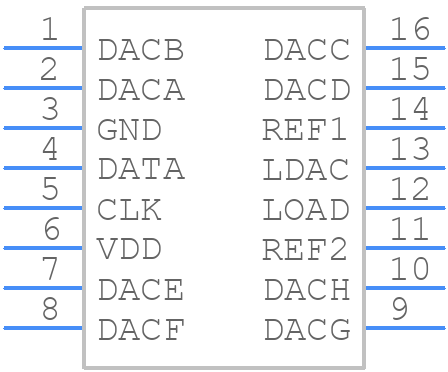

Symbol
TLV5628IDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLV5628IDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G**)
click to zoom
3D Models
TLV5628IDW - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G**)
click to zoom

TLV5628IDW Details

  • Manufacturer Part Number:

    TLV5628IDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.045 MHz

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLV5628IDW Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the AVCC pin.
  • The TLV5628IDW requires a single 2.7V to 5.5V power supply. It's recommended to power the device with a clean and regulated voltage source. The power sequencing requirement is to power up the VCC pin before the AVCC pin, and power down the AVCC pin before the VCC pin.
  • The TLV5628IDW can handle clock frequencies up to 50 MHz. The clock signal should be a clean and stable square wave with a duty cycle of 40% to 60%. It's recommended to use a clock signal with a rise and fall time of less than 10 ns.
  • The TLV5628IDW can be configured for different output voltage ranges by adjusting the external resistors R1 and R2. The output voltage range can be set between 0.5V to 5.5V. However, the output voltage range is limited by the internal reference voltage, which is 2.5V.
  • The TLV5628IDW has a thermal pad on the bottom of the package, which should be connected to a solid ground plane for heat dissipation. It's recommended to use a thermal interface material and a heat sink if the device is expected to operate at high temperatures or high currents.
