Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The analog input traces should be kept short and away from digital traces. Additionally, the decoupling capacitors should be placed close to the device and connected to the analog ground.
The internal reference voltage of the TLV5639CDW is 2.5V, and it is recommended to use this internal reference for most applications. However, an external reference can be used by connecting it to the REF pin, but it must be within the specified range of 2.4V to 2.6V.
The maximum sampling rate of the TLV5639CDW is 1.5 MSPS, and it affects the power consumption. At higher sampling rates, the power consumption increases. For example, at 1.5 MSPS, the power consumption is around 15mW, while at 100 kSPS, it is around 5mW.
The TLV5639CDW can be programmed for different conversion modes using the control register. The control register is accessed through the SPI interface, and the specific bits need to be set or cleared to select the desired conversion mode. For example, to select single-ended input, the INMODE bit needs to be set to 0.
The recommended power-up sequence for the TLV5639CDW is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the clock signal. This ensures that the internal reference voltage is stable before the device starts converting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5639CDW Overview

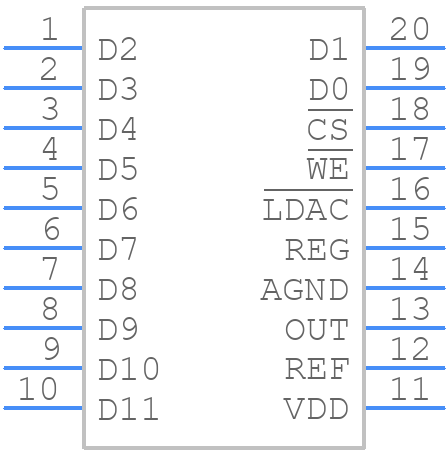

Use the download button to access the TLV5639CDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
