A good layout and routing practice is to keep the analog and digital grounds separate, use a star-grounding configuration, and keep the sensitive analog signals away from the digital signals. Additionally, use a 4-layer PCB with a solid ground plane and a separate power plane to reduce noise and EMI.
The TLV5639IDW has an internal calibration circuit that is enabled by applying a voltage to the CAL pin. The calibration procedure involves applying a voltage to the CAL pin, waiting for the calibration cycle to complete, and then removing the voltage. The device is now calibrated and ready for use.
The TLV5639IDW has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and avoid overheating the device. Additionally, ensure that the device is operated within the recommended temperature range of -40°C to 125°C.
The TLV5639IDW has a built-in POR and BOR circuitry that resets the device during power-up and brown-out conditions. To handle these features, ensure that the power supply is stable and within the recommended voltage range, and use an external reset circuit if necessary to ensure a clean reset signal.
To ensure EMI and EMC compliance, use a shielded enclosure, keep the analog and digital circuits separate, use a common-mode choke, and follow good PCB layout practices. Additionally, ensure that the device is operated within the recommended frequency range and that the output signals are properly filtered and terminated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV5639IDW Overview

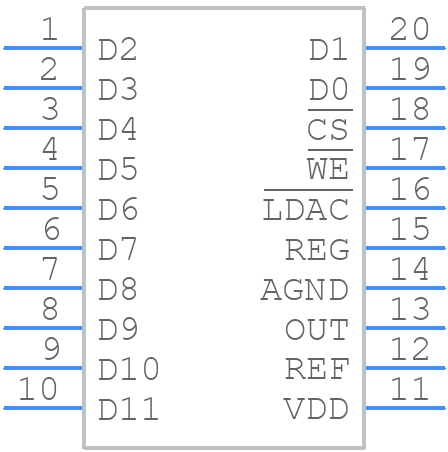

Use the download button to access the TLV5639IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV56,
or try a keyword search, such as Digital to Analog Converters
