Texas Instruments recommends following a star-grounding layout, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
The POR and BOR features are enabled by default. To handle them, ensure that the power supply ramps up slowly (typically 1-2 ms) to allow the internal voltage regulator to stabilize. Also, add a capacitor (typically 1-10 μF) between the VCC pin and ground to filter out noise and ensure a clean power-on reset.
The TLV571IDW can drive a maximum capacitive load of 100 pF. Exceeding this limit may cause oscillations or instability in the output. If a higher capacitive load is required, consider adding a buffer or an op-amp to isolate the load.
To ensure EMC and EMI compliance, follow proper PCB design and layout practices, such as using a solid ground plane, keeping sensitive traces away from noisy areas, and using shielding or filtering components as needed. Additionally, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
The recommended operating temperature range for the TLV571IDW is -40°C to 125°C. However, the device can operate up to 150°C for short periods of time. Ensure that the device is properly derated for temperature and that the application is designed to operate within the recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLV571IDW Overview

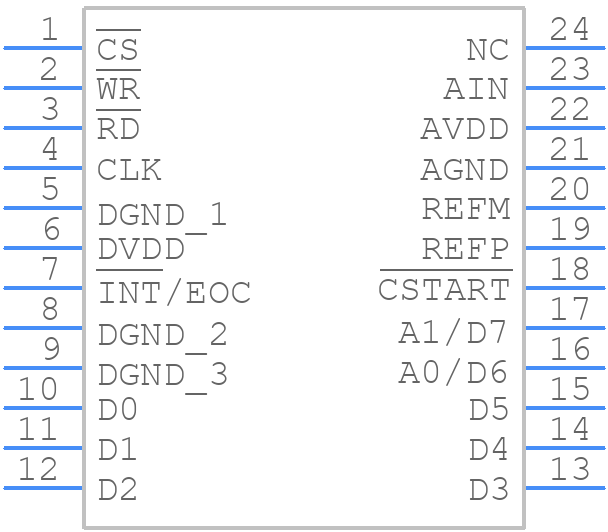

Use the download button to access the TLV571IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLV57,
or try a keyword search, such as Analog to Digital Converters
