- Part Number TMDS171IRGZR
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RGZ0048B
- Released Date Dec 27, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TMDS171IRGZR Details
-
Manufacturer Part Number:
TMDS171IRGZR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Interface IC Type:
RETIMER
TMDS171IRGZR Frequently Asked Questions (FAQs)
-
The recommended PCB layout for the TMDS171IRGZR involves placing the device near the HDMI connector, using a solid ground plane, and minimizing the length of the differential pairs. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure signal integrity with the TMDS171IRGZR, use a differential pair routing, maintain a consistent impedance of 100 ohms, and minimize vias and stubs. Also, use a common mode filter and a differential mode filter to reduce EMI.
-
The maximum cable length supported by the TMDS171IRGZR is 30 meters at 3.4 Gbps and 15 meters at 6 Gbps. However, the actual cable length may vary depending on the cable quality and the system's signal integrity.
-
To configure the TMDS171IRGZR for HDMI 2.0, set the device to TMDS mode, configure the clock frequency to 594 MHz, and set the data rate to 6 Gbps. Also, ensure that the device is powered from a 1.2V supply and the I/O voltage is set to 1.2V.
-
The power consumption of the TMDS171IRGZR is approximately 350 mW at 3.4 Gbps and 500 mW at 6 Gbps. However, the actual power consumption may vary depending on the system's operating conditions and the device's configuration.
Trust Checks
Community Provided
System Verified
Community Approved
TMDS171IRGZR Overview

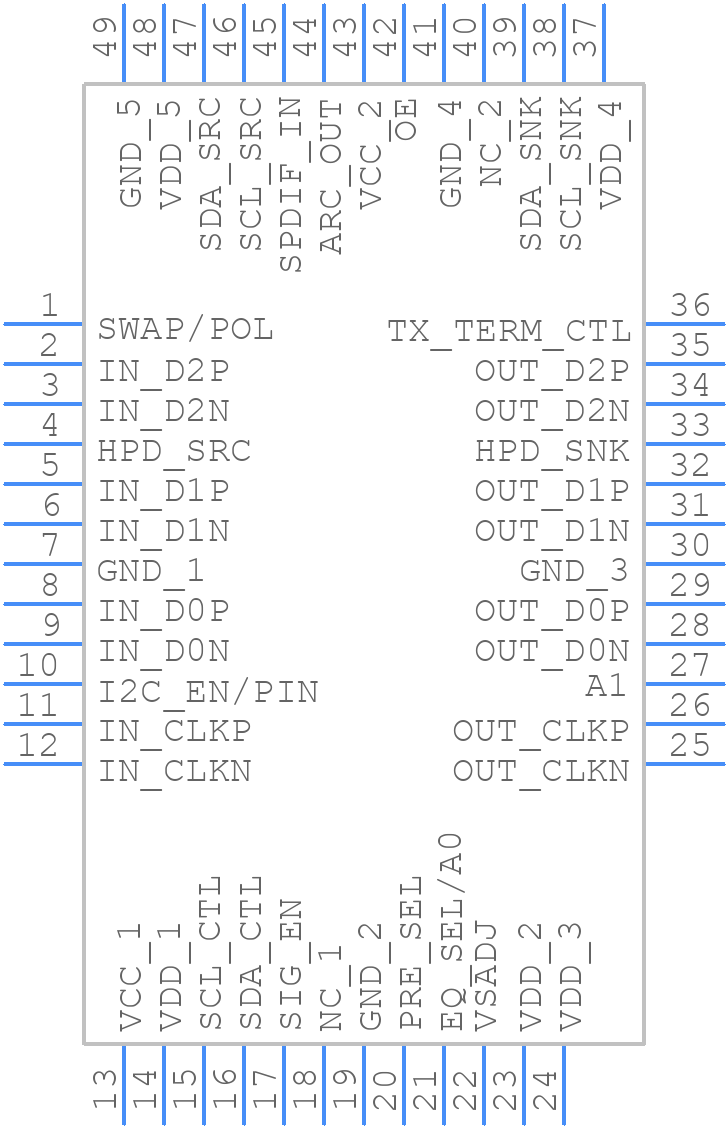

Use the download button to access the TMDS171IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMDS1,
or try a keyword search, such as Other Interface ICs
