Texas Instruments provides a recommended PCB layout in the application note SLMA002, which includes guidelines for component placement, routing, and shielding to minimize EMI.
To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal design guidelines in the datasheet, including providing adequate heat sinking and airflow, and derating the device's operating frequency and voltage as necessary.
The maximum cable length supported by TMDS171RGZR depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation.
Texas Instruments provides a troubleshooting guide in the application note SLMA003, which includes steps for identifying and resolving common issues with TMDS171RGZR, including signal integrity problems and device malfunction.
Yes, TMDS171RGZR is designed to support a wide range of industry standards, including HDMI and DisplayPort. However, it is recommended to consult the relevant standard specifications and Texas Instruments' application notes to ensure compliance with the specific requirements of the target standard.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMDS171RGZR Overview

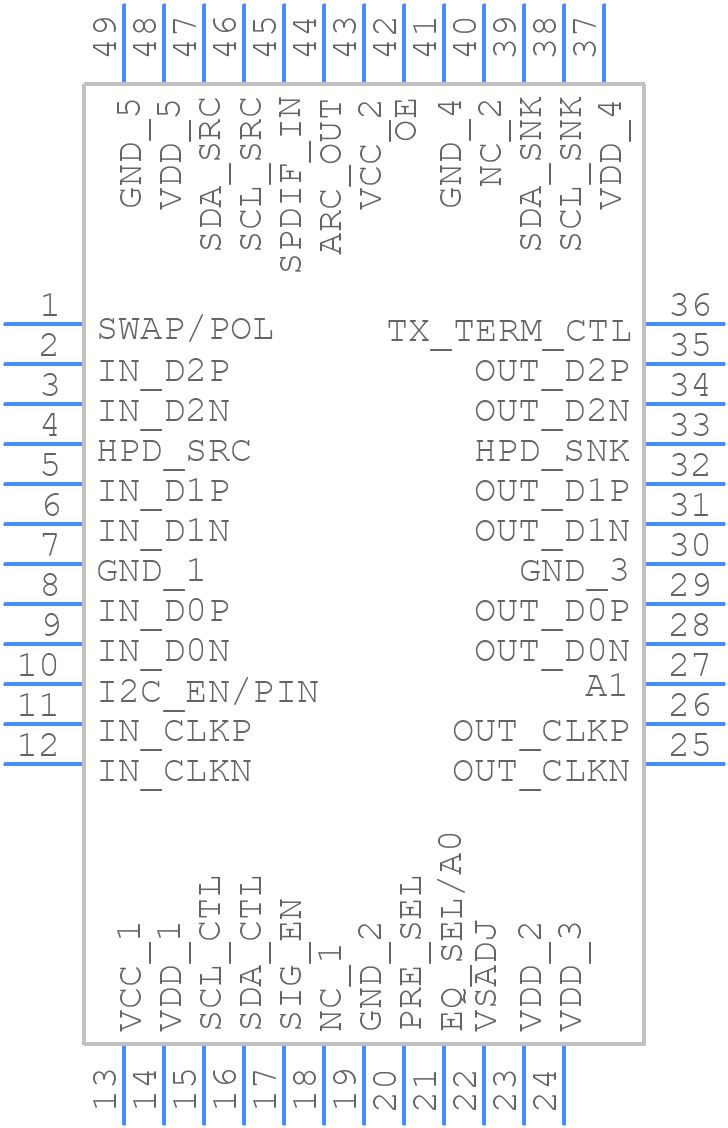

Use the download button to access the TMDS171RGZR schematic symbol, PCB footprint, and 3D model.
