- Part Number TMDS171RGZT
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RGZ0048B
- Released Date Apr 20, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TMDS171RGZT Details
-
Manufacturer Part Number:
TMDS171RGZT
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Interface IC Type:
RETIMER
TMDS171RGZT Frequently Asked Questions (FAQs)
-
A good PCB layout for the TMDS171RGZT involves keeping the differential pairs close together, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a common-mode filter and to keep the clock and data lines separate.
-
To ensure reliable operation of the TMDS171RGZT over the entire operating temperature range, it's essential to follow proper PCB design and layout guidelines, use a reliable power supply, and ensure that the device is properly decoupled. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to keep the device within its recommended operating temperature range.
-
When selecting termination resistors for the TMDS171RGZT, consider the characteristic impedance of the transmission line, the frequency of operation, and the desired signal integrity. A good starting point is to use a 100-ohm differential termination resistor, but this may need to be adjusted based on the specific application and PCB layout.
-
To troubleshoot issues with the TMDS171RGZT, start by verifying the power supply and clock signals. Use an oscilloscope to check the signal integrity and look for signs of signal degradation or distortion. Check the PCB layout and ensure that it follows the recommended guidelines. If the issue persists, consider using a signal integrity analysis tool or consulting with a Texas Instruments support engineer.
-
The TMDS171RGZT is a high-speed, low-power, and low-latency serializer/deserializer (SerDes) device. Compared to other similar devices from Texas Instruments, the TMDS171RGZT offers a unique combination of high-speed data transmission, low power consumption, and small package size. It's essential to review the datasheet and compare the features and specifications of different devices to determine the best fit for a particular application.
Trust Checks
System Verified
TMDS171RGZT Overview

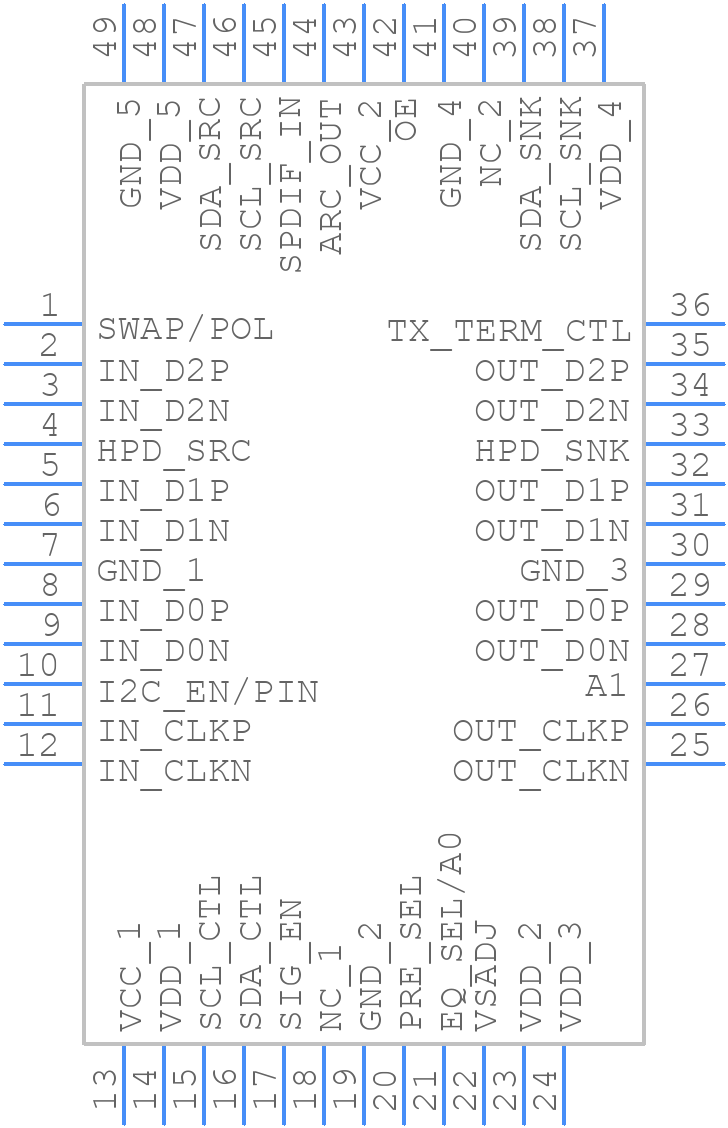

Use the download button to access the TMDS171RGZT schematic symbol, PCB footprint, and 3D model.
