- Part Number TMDS181RGZT
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RGZ0048B_height 1
- Released Date Sep 21, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TMDS181RGZT Details
-
Manufacturer Part Number:
TMDS181RGZT
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Interface IC Type:
RETIMER
TMDS181RGZT Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The TMDS181RGZT has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the thermal plane. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
-
The TMDS181RGZT supports cable lengths up to 10 meters (33 feet) at a data rate of 18 Gbps. However, the actual cable length may vary depending on the specific application, cable quality, and signal integrity requirements.
-
Use a logic analyzer or oscilloscope to capture and analyze the signal waveforms at the input and output of the TMDS181RGZT. Check for signal integrity issues, clock domain crossing, and data transmission errors. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
-
While the TMDS181RGZT is designed for HDMI applications, it can be used in other high-speed digital applications that require transmission of high-frequency signals over cables. However, ensure that the device is operated within its specified electrical and thermal limits, and that the application meets the device's signal integrity and electromagnetic compatibility (EMC) requirements.
Trust Checks
Community Provided
System Verified
Community Approved
TMDS181RGZT Overview

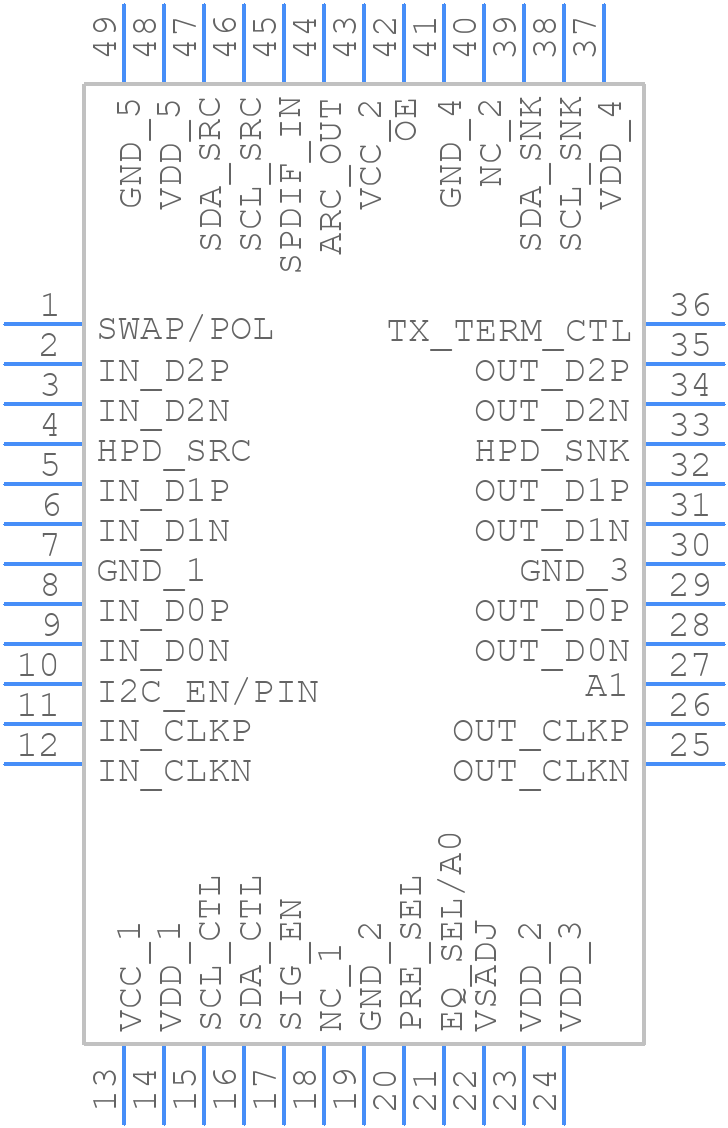

Use the download button to access the TMDS181RGZT schematic symbol, PCB footprint, and 3D model.
