TMP411CD - Texas Instruments

Description: TEXAS INSTRUMENTS - TMP411CD - Temperature Sensor IC, Digital, ± 1°C, -40 °C, +125 °C, SOIC, 8 Pins

Download TMP411CD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

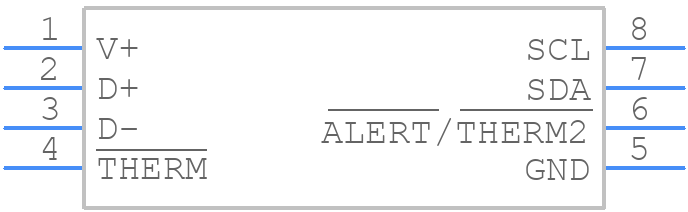

TMP411CD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP411CD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC-ren5
click to zoom
3D Models
TMP411CD - Texas Instruments - 3D model - Small Outline Packages - 8-Pin SOIC-ren5
click to zoom

TMP411CD Details

  • Manufacturer Part Number:

    TMP411CD

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2.5 Cel

  • Additional Feature:

    HYSTERESIS 500 MV

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.03 mA

  • Operating Temperature-Max:

    127 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

TMP411CD Frequently Asked Questions (FAQs)

  • The TMP411CD can measure temperatures from -50°C to 150°C, but it's recommended to operate within the -20°C to 125°C range for optimal accuracy.
  • The TMP411CD does not require calibration. It is a digital temperature sensor with an internal calibration, and it provides accurate temperature readings without the need for external calibration.
  • The TMP411CD has a resolution of 0.0625°C, which means it can detect temperature changes as small as 0.0625°C.
  • Yes, the TMP411CD has a high level of noise immunity due to its digital output and internal filtering. However, it's still recommended to follow proper PCB design and layout practices to minimize noise coupling.
  • The TMP411CD communicates over an I2C interface, which is a standard serial communication protocol. You can use a microcontroller's I2C peripheral to read temperature data from the TMP411CD.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP411CD Overview

Use the download button to access the TMP411CD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP41, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
