TMP423BIDCNT - Texas Instruments

Description: Triple Remote and Local Temperature Sensor with N-Factor and Series-R Correction

Download TMP423BIDCNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

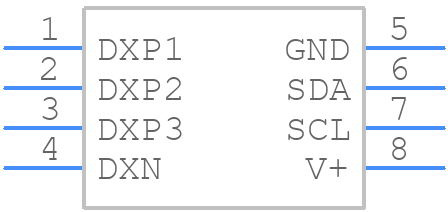

Symbol
TMP423BIDCNT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP423BIDCNT - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom
3D Models
TMP423BIDCNT - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom

TMP423BIDCNT Details

  • Manufacturer Part Number:

    TMP423BIDCNT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.175 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.038 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

TMP423BIDCNT Frequently Asked Questions (FAQs)

  • The TMP423BIDCNT can operate from -40°C to 125°C, but the accuracy of the temperature measurement may vary across this range.
  • The TMP423BIDCNT can be configured for remote temperature sensing by connecting the remote diode to the D+ and D- pins, and using the internal diode as a reference. The device can then be programmed to measure the temperature of the remote diode.
  • The TMP423BIDCNT has an accuracy of ±1°C from -20°C to 125°C, and ±2°C from -40°C to -20°C. However, this accuracy can be affected by various factors such as the quality of the thermal connection and the presence of thermal gradients.
  • While the TMP423BIDCNT can operate up to 125°C, it is not recommended for high-temperature applications above 100°C due to potential degradation of the device's accuracy and reliability.
  • The TMP423BIDCNT can be interfaced with a microcontroller using the I2C or SMBus interface. The device has a 7-bit address, and the microcontroller can read the temperature data from the device using the I2C or SMBus protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP423BIDCNT Overview

Use the download button to access the TMP423BIDCNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP42, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
