TMP468AIYFFR - Texas Instruments

Description: ±0.75⁰C High-Accuracy Multi-channel Remote and Local Temperature Sensor

Download TMP468AIYFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

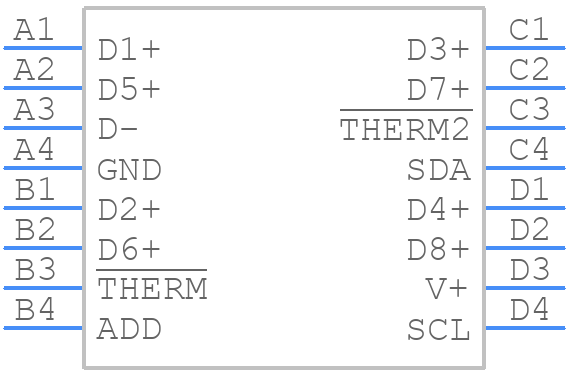

TMP468AIYFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP468AIYFFR - Texas Instruments PCB footprint - BGA - BGA - YFF0016
click to zoom
3D Models
TMP468AIYFFR - Texas Instruments - 3D model - BGA - YFF0016
click to zoom

TMP468AIYFFR Details

  • Manufacturer Part Number:

    TMP468AIYFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-11-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    0.35 Cel

  • Body Breadth:

    1.5615 mm

  • Body Height:

    0.625 mm

  • Body Length or Diameter:

    1.5615 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.375 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Termination Type:

    SOLDER

TMP468AIYFFR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern around the device is recommended. This helps to minimize thermal resistance and ensure accurate temperature readings.
  • Use a buffer amplifier or an op-amp with a high input impedance (>10^9 ohms) to minimize loading effects and ensure accurate voltage readings.
  • Calibrate the device in a temperature-controlled environment using a precision temperature reference. Apply a known temperature to the device and measure the output voltage. Repeat this process at multiple temperatures to create a calibration curve.
  • Use a thermally conductive interface material (e.g., thermal tape or thermal grease) between the device and the heat source. Ensure good thermal contact and minimize thermal resistance.
  • The maximum cable length depends on the specific application and noise environment. As a general guideline, keep the cable length < 10 inches (25 cm) to minimize signal degradation and noise pickup.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP468AIYFFR Overview

Use the download button to access the TMP468AIYFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP46, or try a keyword search, such as Temperature Sensors
