TMP468AIYFFT - Texas Instruments

Description: ±0.75⁰C High-Accuracy Multi-channel Remote and Local Temperature Sensor

Download TMP468AIYFFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

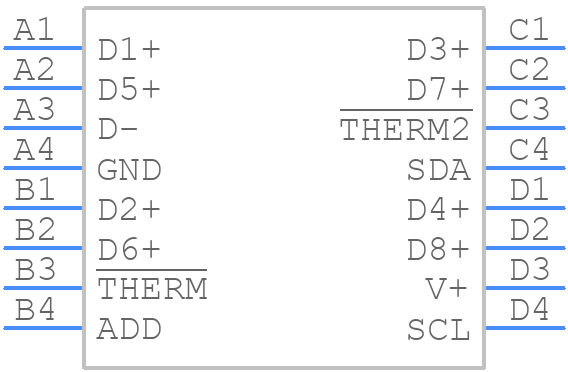

TMP468AIYFFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP468AIYFFT - Texas Instruments PCB footprint - BGA - BGA - YFF0016
click to zoom
3D Models
TMP468AIYFFT - Texas Instruments - 3D model - BGA - YFF0016
click to zoom

TMP468AIYFFT Details

  • Manufacturer Part Number:

    TMP468AIYFFT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-11-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    0.35 Cel

  • Body Breadth:

    1.5615 mm

  • Body Height:

    0.625 mm

  • Body Length or Diameter:

    1.5615 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    13

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.375 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN SILVER COPPER

  • Termination Type:

    SOLDER

TMP468AIYFFT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
  • The TMP468AIYFFT has an internal calibration mechanism. However, for high-accuracy applications, external calibration using a precision temperature source and a multimeter is recommended.
  • The maximum cable length for the I2C interface is 10 meters, but it's recommended to keep the cable length as short as possible to minimize signal degradation.
  • Yes, the TMP468AIYFFT is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure reliable operation.
  • The thermal shutdown feature is enabled by default. When the die temperature exceeds 150°C, the device will shut down. To handle this, implement a thermal monitoring system to detect and respond to thermal shutdown events.
