The recommended power-up sequence is to apply power to the core voltage (VDD) first, followed by the input/output voltage (VDDIO), and then the clock signal. This ensures proper device operation and prevents latch-up.
To optimize the DDR3 memory interface, ensure that the memory clock frequency is set correctly, and the memory timing parameters (tCL, tRAS, tRCD, tRP, tWR) are configured according to the DDR3 memory module specifications. Additionally, use the EMIF (External Memory Interface) calibration feature to optimize the memory interface timing.
The maximum operating temperature range for the TMS320C6472ECTZ is -40°C to 100°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
To implement a secure boot mechanism, use the device's built-in security features such as the Secure Boot Loader (SBL) and the Hardware Security Module (HSM). The SBL ensures that only authorized software is executed, while the HSM provides cryptographic acceleration and secure key storage.
The maximum bandwidth of the PCIe interface on the TMS320C6472ECTZ is 5 Gbps per lane, with a maximum of 4 lanes available. This translates to a maximum bandwidth of 20 Gbps.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMS320C6472ECTZ Overview

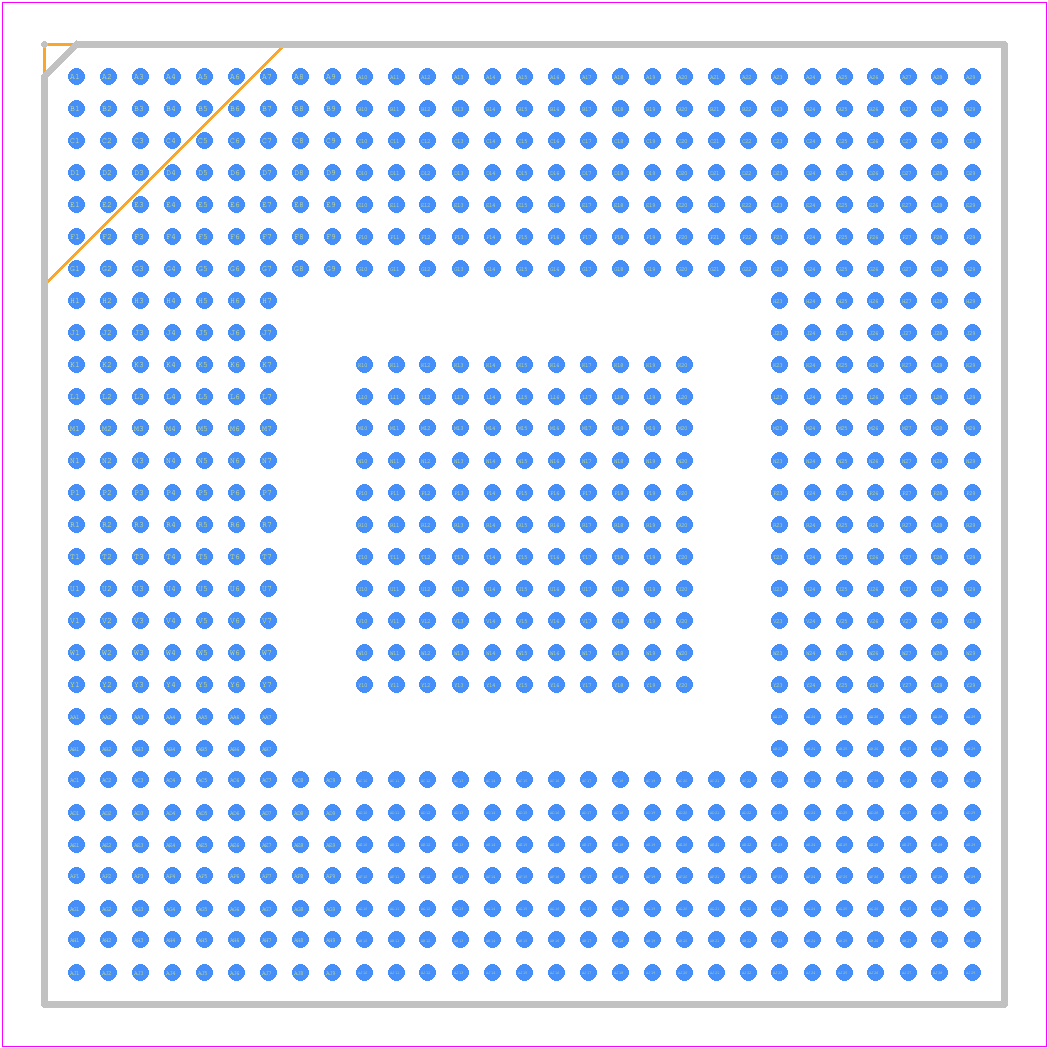

Use the download button to access the TMS320C6472ECTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMS32,
or try a keyword search, such as Digital Signal Processors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
