TMS320C6472ECTZ7 - Texas Instruments

Description: Digital Signal Processors & Controllers - DSP, DSC Digital Signal Proce Processor

Download TMS320C6472ECTZ7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TMS320C6472ECTZ7 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

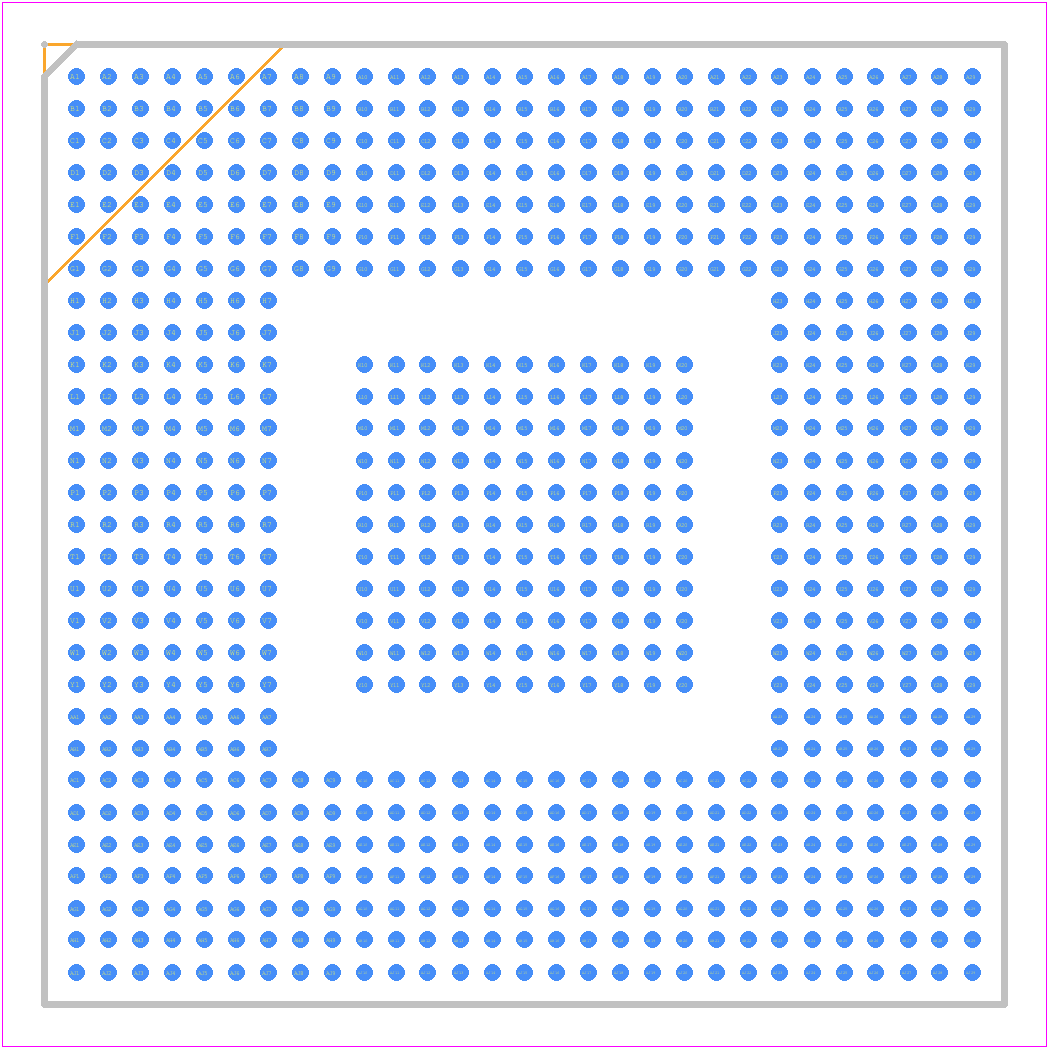

TMS320C6472ECTZ7 - Texas Instruments PCB footprint - BGA - BGA - CTZ(S-PBGA--N737)
click to zoom
3D Models
TMS320C6472ECTZ7 - Texas Instruments - 3D model - BGA - CTZ(S-PBGA--N737)
click to zoom

TMS320C6472ECTZ7 Details

  • Manufacturer Part Number:

    TMS320C6472ECTZ7

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    737

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Address Bus Width:

    14

  • Barrel Shifter:

    NO

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    50 MHz

  • External Data Bus Width:

    32

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B737

  • JESD-609 Code:

    e1

  • Length:

    24 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    4

  • Number of DMA Channels:

    64

  • Number of Terminals:

    737

  • Number of Timers:

    14

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA737,29X29,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • RAM (words):

    8192

  • ROM Programmability:

    MROM

  • Seated Height-Max:

    3.242 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER
