TMUX1308DYYR - Texas Instruments

Description: Multiplexer Switch ICs 5-V, 8:1, 1-channel general-purpose multiplexer with 1.8-V logic control

Download TMUX1308DYYR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

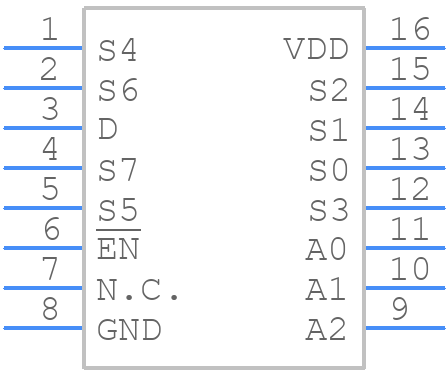

Symbol
TMUX1308DYYR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMUX1308DYYR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DYY0016A
click to zoom
3D Models
TMUX1308DYYR - Texas Instruments - 3D model - Small Outline Packages - DYY0016A
click to zoom

TMUX1308DYYR Details

  • Manufacturer Part Number:

    TMUX1308DYYR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-03-05

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 8:1

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    500 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    4.2 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    100 dB

  • On-state Resistance Match-Nom:

    4 Ω

  • On-state Resistance-Max (Ron):

    740 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.13,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.62 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    105 ns

  • Switch-on Time-Max:

    75 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TMUX1308DYYR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a symmetrical layout with the device placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is connected to. The analog and digital grounds should be separated and connected at a single point. Additionally, the device's analog and digital power supplies should be decoupled with 10uF and 100nF capacitors, respectively.
  • The TMUX1308DYYR requires a dual power supply, with VCCA (analog) ranging from 2.7V to 5.5V and VCCD (digital) ranging from 1.65V to 5.5V. Ensure that the power supplies are clean and well-regulated, and that the device is powered up in the correct sequence (VCCA first, then VCCD).
  • The maximum frequency of the TMUX1308DYYR's clock input is 50 MHz. However, the device can operate at higher frequencies with reduced performance. It is recommended to consult the datasheet for specific frequency and performance trade-offs.
  • The TMUX1308DYYR can be configured for different ADC or DAC interfaces by programming the device's internal registers. The specific configuration depends on the interface type and the device connected to the TMUX1308DYYR. Consult the datasheet and application notes for specific configuration details.
  • The maximum data transfer rate of the TMUX1308DYYR is 50 Mbps. However, the actual data transfer rate may be limited by the interface type, clock frequency, and system design.
