SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
3 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA122DGNR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPA122DGNR datasheet, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure optimal thermal performance.
The gain setting of the TPA122DGNR depends on the specific requirements of your application. The datasheet provides a gain setting table that can be used to select the appropriate gain based on the input voltage, output power, and desired signal-to-noise ratio (SNR). Additionally, the gain can be adjusted using external resistors to fine-tune the amplifier's performance.
The maximum power dissipation of the TPA122DGNR is dependent on the ambient temperature and the thermal resistance of the PCB. The datasheet provides a power dissipation calculation formula that can be used to determine the maximum power dissipation based on the specific application requirements. Typically, the maximum power dissipation is around 2.5W.
The TPA122DGNR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits that can detect and respond to abnormal voltage conditions. Additionally, external voltage regulators and protection circuits can be used to further protect the device from voltage transients and faults.
The recommended input and output coupling capacitor value for the TPA122DGNR depends on the specific application requirements and the frequency response desired. Typically, a 1uF to 10uF capacitor is used for input coupling, and a 10uF to 100uF capacitor is used for output coupling. The datasheet provides more detailed guidance on selecting the appropriate capacitor values.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA122DGNR Overview

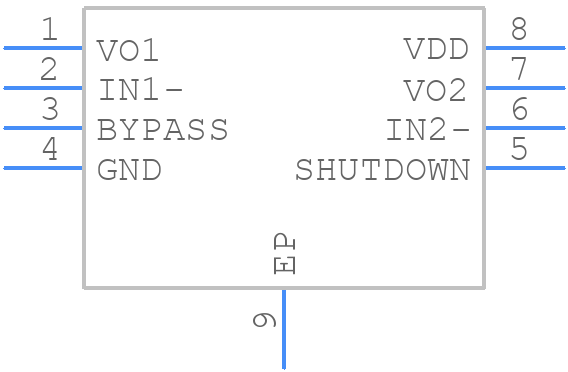

Use the download button to access the TPA122DGNR schematic symbol, PCB footprint, and 3D model.
