TI recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to improve heat dissipation. A minimum of 2 oz copper thickness is recommended for the top layer.
To prevent oscillations, ensure that the gain-setting resistors are placed close to the IC, and the input and output capacitors are placed close to the pins. Also, use a low-ESR capacitor for the power supply decoupling, and avoid using long traces or wires that can act as antennas.
The maximum power dissipation of the TPA152DRG4 is dependent on the ambient temperature and the thermal resistance of the PCB. Use the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the thermal resistance. The maximum power dissipation is typically around 2.5W.
Yes, the TPA152DRG4 can be used in a bridged configuration to increase the output power. To do this, connect the outputs of two amplifiers in anti-phase, and use a bridging capacitor to combine the outputs. Ensure that the amplifiers are properly synchronized and that the output impedance is matched to the load.
Use a voltage regulator or a voltage clamp to limit the input voltage to the recommended maximum of 12V. Also, use a current-limiting resistor or a fuse in series with the output to prevent overcurrent conditions. Additionally, consider using a thermal shutdown circuit to protect the IC from overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA152DRG4 Overview

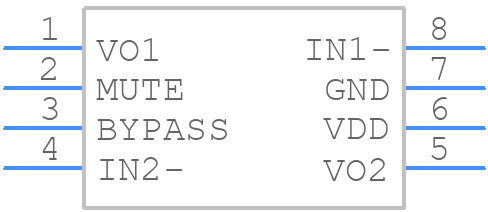

Use the download button to access the TPA152DRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA15,
or try a keyword search, such as Audio/Video Amplifiers
