Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and thermal dissipation.
The input capacitor values depend on the input impedance, frequency response, and noise requirements of your system. A good starting point is to use a 1-10uF capacitor with a voltage rating of at least 10V. You may need to experiment with different values to achieve the desired frequency response and noise performance.
The maximum power dissipation of the TPA2000D1PWG4 is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated based on the thermal resistance of the PCB and the ambient temperature.
You can use voltage regulators, such as the TLV703 or LP2985, to regulate the supply voltage to the TPA2000D1PWG4. Additionally, you can add overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the IC. The datasheet provides guidelines for OVP and UVP circuit design.
The TPA2000D1PWG4 has a thermal pad that requires a heatsink to dissipate heat efficiently. A good heatsink design should have a thermal resistance of less than 10°C/W. You can use a thermal interface material (TIM) to improve the thermal conductivity between the IC and the heatsink. The datasheet provides guidelines for heatsink design and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2000D1PWG4 Overview

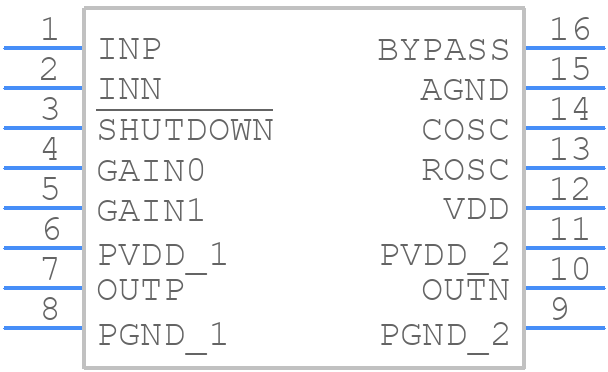

Use the download button to access the TPA2000D1PWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
