Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and thermal dissipation.
The input capacitor values depend on the input impedance, frequency response, and noise requirements of your system. A general rule of thumb is to use a 1-10uF capacitor with a voltage rating of at least 10V. However, it's recommended to consult the datasheet and application notes for more specific guidance.
The maximum power dissipation of the TPA2000D1 is dependent on the ambient temperature, PCB layout, and thermal management. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, it's essential to perform thermal calculations and simulations to ensure the device operates within safe limits.
Yes, the TPA2000D1 can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage, power supply, and thermal management. Texas Instruments provides application notes and design examples for bridged configurations.
Common issues with the TPA2000D1 can be troubleshooted by checking the PCB layout, component values, and power supply quality. Ensure that the input and output stages are properly biased, and the device is operated within its recommended operating conditions. Consult the datasheet, application notes, and Texas Instruments' support resources for more guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2000D1TPWRG4Q1 Overview

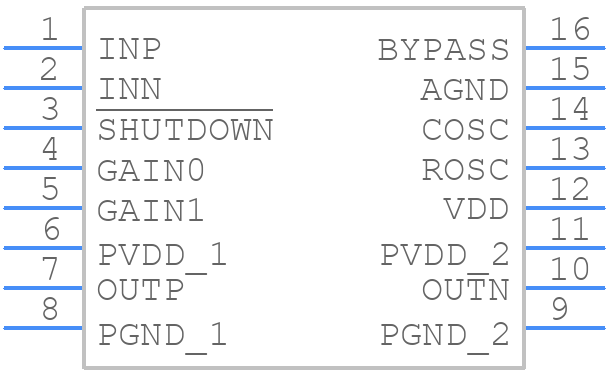

Use the download button to access the TPA2000D1TPWRG4Q1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPA20,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
