SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max:
4.5 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPA2005D1DGNG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values depend on the input impedance, frequency response, and noise requirements of your application. A general rule of thumb is to use a 1-10uF capacitor in series with a 10-100nF capacitor to filter out high-frequency noise and ensure a stable input signal.
The maximum power dissipation of the TPA2005D1DGNG4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, it's essential to perform thermal calculations and ensure proper heat sinking to prevent overheating.
Yes, the TPA2005D1DGNG4 can be used in a bridged configuration to increase the output power and improve the signal-to-noise ratio. However, this requires careful consideration of the output stage design, including the selection of external components and the PCB layout.
Common issues with the TPA2005D1DGNG4 can be troubleshooted by checking the input signal quality, output stage design, and PCB layout. Ensure that the input signal is within the recommended range, and the output stage is properly biased and loaded. Also, check for any signs of oscillation, such as excessive heat or noise, and ensure that the PCB layout is following the recommended guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2005D1DGNG4 Overview

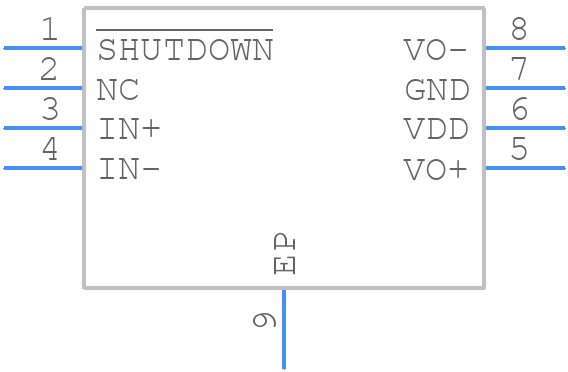

Use the download button to access the TPA2005D1DGNG4 schematic symbol, PCB footprint, and 3D model.
