Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The input coupling capacitors should be selected based on the input signal frequency, amplitude, and impedance. A general rule of thumb is to choose capacitors with a value of 1-10 μF, with a voltage rating that exceeds the maximum input signal amplitude. Additionally, consider the capacitor's equivalent series resistance (ESR) and ensure it's low enough to minimize signal attenuation.
The maximum power dissipation of the TPA2005D1GQYR is 2.5 W. To ensure it doesn't overheat, follow proper thermal management techniques, such as using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. Also, calculate the power dissipation based on the output power, supply voltage, and efficiency, and ensure it's within the recommended limits.
Yes, the TPA2005D1GQYR can be used in a bridged configuration to increase the output power. To do this, connect two devices in a bridge-tied load (BTL) configuration, with each device driving one half of the load. Ensure that the input signals are properly phased and that the output filters are designed to handle the increased power.
To filter out noise and EMI, use a combination of passive components, such as resistors, capacitors, and inductors, to create a low-pass filter or a pi-filter. Additionally, ensure good PCB layout practices, such as separating analog and digital signals, using ground planes, and minimizing trace lengths. Shielding and filtering of the input and output signals can also help reduce noise and EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2005D1GQYR Overview

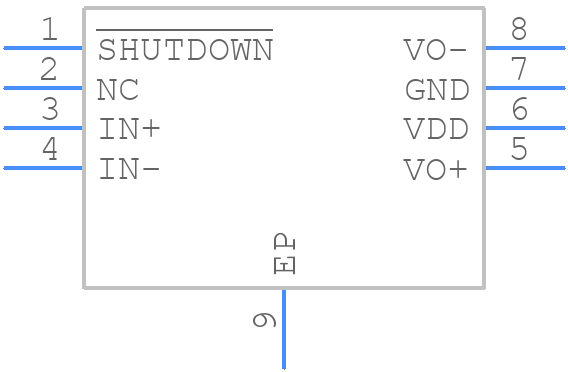

Use the download button to access the TPA2005D1GQYR schematic symbol, PCB footprint, and 3D model.
