A good PCB layout for the TPA2005D1ZQYR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
The gain setting depends on the specific application requirements. The TPA2005D1ZQYR has a gain range of 6 dB to 26 dB. Consider the input signal level, desired output power, and noise requirements to select the optimal gain setting. TI provides gain calculation formulas and examples in the datasheet.
The maximum power dissipation of the TPA2005D1ZQYR is 2.5 W. However, this value can be affected by the ambient temperature, PCB layout, and thermal management. Ensure proper thermal design and heat sinking to prevent overheating.
Yes, the TPA2005D1ZQYR can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage, power supply, and thermal management. Consult the datasheet and application notes for guidance on bridged configurations.
To minimize noise and EMI, use proper PCB layout techniques, decouple the power supply, and add filtering components such as capacitors and inductors. The TPA2005D1ZQYR has built-in EMI filtering, but additional filtering may be necessary depending on the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPA2005D1ZQYR Overview

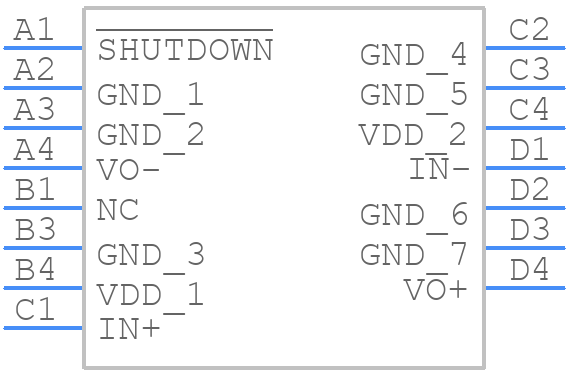

Use the download button to access the TPA2005D1ZQYR schematic symbol, PCB footprint, and 3D model.
